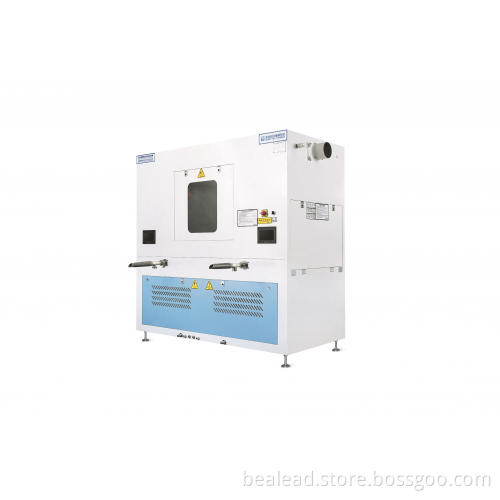

Automated Polyester Fiber Filling Machine

This fiber filling machine can satisfy two application requirements, fiber as well as down.

Weighing unit has been put into main box, so covered space of machine would be reduced.

Fiber stuffing machine has apportioned function for big grams. Its weighing range is 1-80g, capable of filling both large and small lattice panels.

Polyester fiber filling machine having technology with Easy to operate PLC programmed time based automatic filling weight adjustment unit for last

production. We have become many famous brand manufacturers' fiber filling machine suppliers.

Aim at filling fiber, Double filling ports for fiber stuffine machine, allow 2 operators working at the same time.

Highest precision can reach to 0.1g.

Details:

Brand: Bealead

Model: 402D

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 2

Scales by filling pipe: 2

Fillings by hour: 1600 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 1g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Accessories

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.
