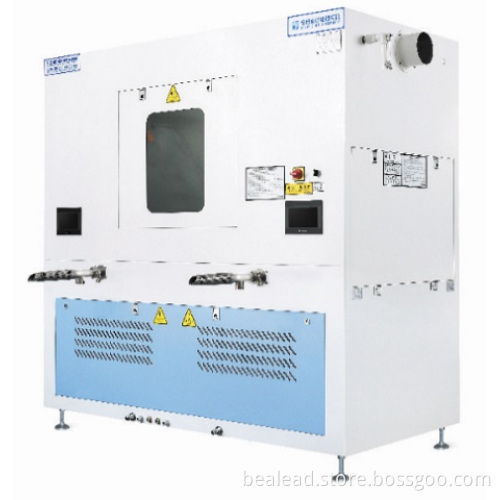

Four ports Fiber Filling Machine

This automatic fiber filling machine can satisfy two application requirements, fiber as well as down. 4 filling ports means it allows 4 workers to operate at same time.

Weighing unit of fiber filling machine has been put into main box, so covered space of fiber stuffing machine would be reduced.

Automatic cotton filling machine has apportioned function for big grams. Weighing range of ball fiber filling machine is 1-80g, capable of filling both large and small lattice panels.

Highest precision can reach 0.1g.

Details:

Brand: Bealead

Model: 404D

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 4

Scales by filling pipe: 1

Fillings by hour: 1600 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 1g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Accessories

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.

Exhibitions

CE Certificate
