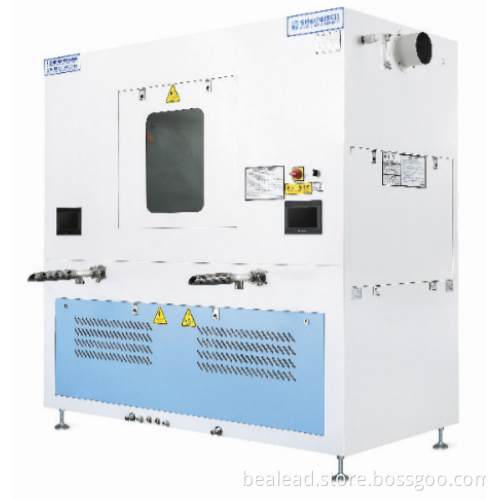

Ball Fibre Filling Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Supply Ability:	200 SETS/MONTH
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	CE/ISO 9001
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

"BEALEAD" supplies fiber filling machine and down stuffing machine all over the world, attaches great importance to scientific management and talent development, has abundant technical force, advanced technology, strict quality management system and working attitude of keeping improvement. All these ensure the enterprise to be in line with international standards, and promote the company to develop sustainably.

Polyester fiber filling machine having technology with Easy to operate PLC programmed time based automatic filling weight adjustment unit for last production. We have become many famous brand manufacturers' fiber filling machine suppliers.

Aim at filling fiber, Double filling ports for fiber stuffine machine, allow 2 operators working at the same time.

Fully automatic fiber filling machine, weighing and filling.

Max weight of ball fiber filling machine can reach to 80g, min is 1g.

Highest precision of polyester fiber filling machine reach to 0.1g.

Storage unit and weighing unit of fiber stuffing machine are combined together to reduce covering space.

Outside the topic words, we also have a model of ball fiber filling machine main used for toys' filling.

Details:

Brand: Bealead

Model: 402D

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 2

Scales by filling pipe: 2

Fillings by hour: 1600 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 1g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Voltage	380V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	11KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1.6m³/min
Max. Power	3.5KW	Air Monitoring System	-
PPR Pipe	1.5 inch	Down Returning System	-
Pipe Distance	≤20m	Humidity Control System	√

Accessories

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.
