Fully Automatic Weighting Cotton Filling Machine

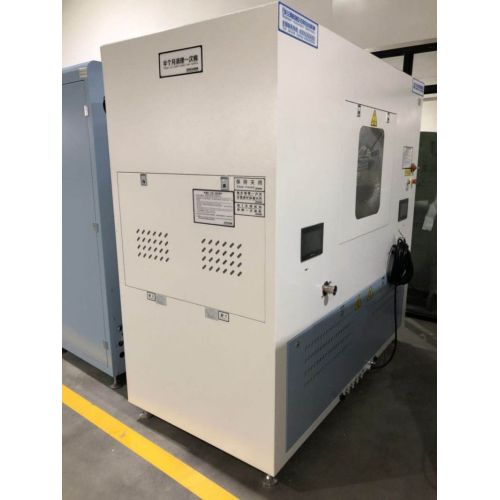

402D  automatic fiber filling machine has 2 filling stations with two weighing systems, fiber stuffing machine can be operated by two workers, measurement controllable, replace the original inefficient multi-handmade operating mode. More applicable for single filling requirement above 5 grams, higher efficiency, higher accuracy, sweeping breakthrough of the cotton filling technology.

Details:

Brand: Bealead

Model: 402D

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 2

Scales by filling pipe: 2

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 5g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Voltage	380V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	11KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1.6m³/min
Max. Power	3.5KW	Air Monitoring System	-
PPR Pipe	1.5 inch	Down Returning System	-
Pipe Distance	≤20m	Humidity Control System	√
