Automatic Cotton Padded Clothes Filling Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Supply Ability:	200 SETS/MONTH
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Certificate:	CE/ISO 9001
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

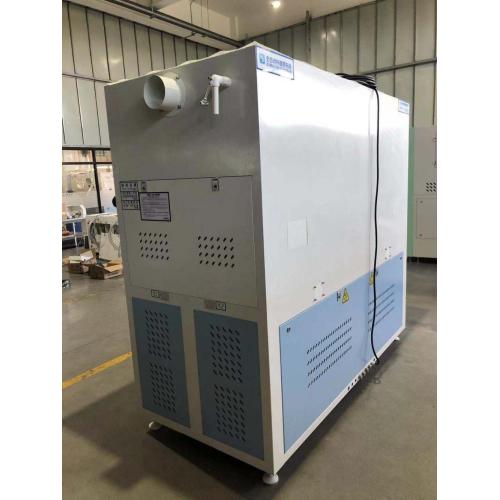

402D automatic fiber filling machine can fill polyester fiber, ball fiber and short polyester fiber. IFiber stuffing machine has 2 filling pipes, double weighing system by one station.

Weighing range of ball fiber filling machine is 5-80g, capable of filling both large and small lattice panels.

Details:

Brand: Bealead

Model: 402D

Composed by: 1 feeding unit and 2 weighing units / filling station

Filling Pipes: 2

Scales by filling pipe: 2

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Weight: 700kg

Filling Storage: 10kg

Weighing Range: 5g- 80g

Accuracy: 0.1g

Feeding Unit Size: 2.07* 1* 2.01m

Overall Size: 2.07* 2.4* 2.01m

Min. Site Area: 4m* 6m

Main Specification

Voltage	380V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	11KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1.6m³/min
Max. Power	3.5KW	Air Monitoring System	-
PPR Pipe	1.5 inch	Down Returning System	-
Pipe Distance	≤20m	Humidity Control System	√

Accessories

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
