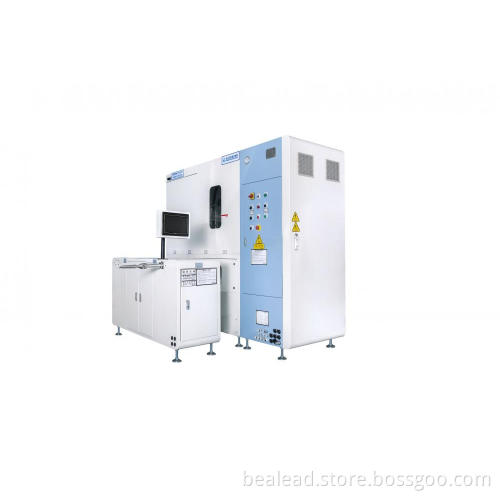

Polyester Balls Double Filling Station Machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Supply Ability:	200 SETS/MONTH
Payment Type:	L/C,T/T
Incoterm:	FOB,CIF
Certificate:	CE/ISO 9001
Transportation:	Ocean,Air
Port:	Shanghai

Product Description

The automatic down filling machine is our high performance down filling machine as well as fiber filling machine, developed to match Polyester balls filling material as well as Down fillings;

Very fast & Accurate down garment filling machine, has down returning system function.

Details:

Brand: Bealead

Model: 246B

Composed by: 1 feeding unit and 2 Weighing Units/ Filling Station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 1800 ( Polyester Balls)/ 1400 ( Down)

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 1000kg

Filling Storage: 10kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 2.4* 0.9* 2m

Weighing Unit Size: 1.6* 0.5* 0.9m

Overall Size: 2.4* 4.2* 2m

Min. Site Area: 4m* 5m

Main Specification

Voltage	380V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	11KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1.6m³/min
Max. Power	3.5KW	Air Monitoring System	√
PPR Pipe	1.5 inch	Down Returning System	√
Pipe Distance	≤20m	Humidity Control System	-
