Small One Port Filling Machine

Get Latest Price

Transportation:: Ocean, Land

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	200 sets/month
Certificate:	CE/ISO 9001
Transportation:	Ocean,Land
Port:	Shanghai

Product Description

Professional down filling machine leader--Bealead, has own production plant. A series of down stuffing machine, like down jacket filling machine, fiber filling machine, quilt filliing machine, we think there should be one model that is suitable for you.

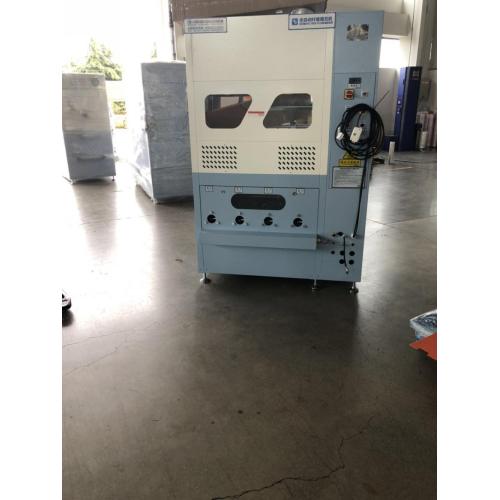

DF-1403 is a small down garment filling machine which is used for sample making or some small orders production.

Details:

Brand: Bealead

Model: DF-1403X

Composed by: 1 feeding unit and 1 weighing unit/ filling station

Filling Pipes: 1

Scales by filling pipe: 4

Fillings by hour: 1000-1500 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 800kg

Filling Storage: 10kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 1.45m*0.8m*2m

Weighing Unit Size: 1.02m*0.63m*0.85m

Overall Size: 1.45m*2.5m*2m

Min. Site Area: 3.6m* 4m

Main Specification

Voltage	220V	Air Tank	≥0.6m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	4KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥0.5m³/min
Max. Power	2.5KW	Air Monitoring System	√
PPR Pipe	1 inch	Down Returning System	√
Pipe Distance	≤20m	Humidity Control System	√
