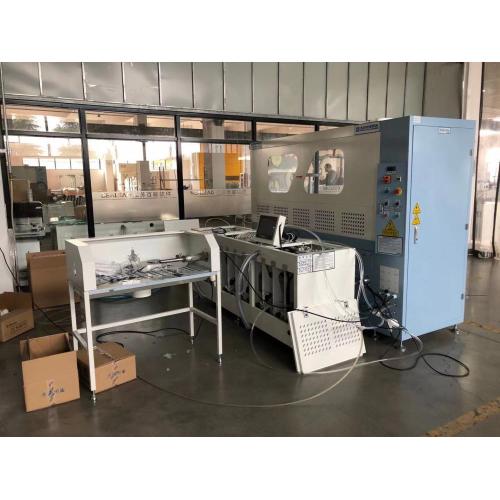

4 Heads 24 Scales Down Filling Machine

With the increasing demand of filling speed and filling stations, we develop this 4 heads down jacket filling machine which totally has 24 scales that can meet customers' requirements fully.

This automatic down filling amchine has wide application for different types of down. Such as 50, 60, 70, 80, 90 down can be used. Also ball fiber, short polyester fiber can be applicable for this down garment filling machine.
Wide measure, the weighing range of down filling machine can set 0.2-20 grams once to suit for filling both separate grids and normal grids.

Each filling nozzle of down stuffing machine with 6 weighing device, save weighing time, improve efficiency, so that save labor cost well. It's high output down filling machine with high efficiency.

Details:

Brand: Bealead

Model: DF-4604X

Composed by: 1 feeding unit and 4 weighing units/ filling station

Filling Pipes: 4

Scales by filling pipe: 6

Fillings by hour: 1800-2000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 12kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Main Unit Size: 2.6m*0.95m*2m

Weighing Unit Size: 2.196m*0.61m*0.88m

Overall size: 2.6m*4.3m*2m

Min. Site Area: 5m* 6.3m

Main Specification

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
