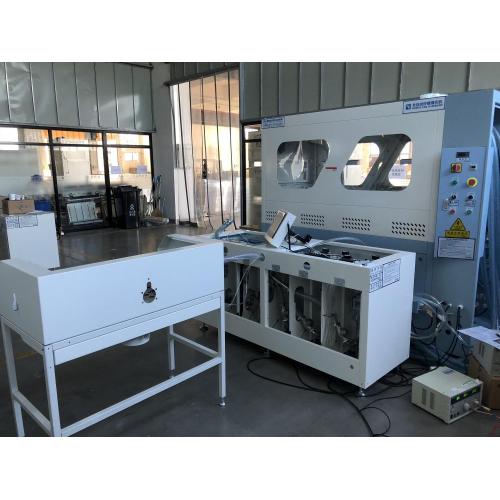

One Head Six Scales Down Filling Machine

Single head down stuffing machine with 6 scales supported, quick filling and high accuracy.

1603X type automatic down filling machine is the fifth generation down filling machine, with 1 pipe supported by 6 weighing systems.

Accuracy filling for down garment filling machine, Could fill like 0.26g, 0.76g, 3.21g as well as 23.5g or above.

Wide measure, suit for filling both separate grids and normal grids.

Excellent for extra slim Chamber, make out Perfect garment, very even.

Even it can be designed as home textile filling machine to fill sleeping bag to change some parts.

Details:

Brand: Bealead

Model: DF-1603X

Composed by: 1 feeding unit and 1 weighing units/ filling station

Filling Pipes: 1

Scales by filling pipe: 6

Fillings by hour: 1000-1500 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 10kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Main Unit Size: 2.2m*0.95m*2m

Weighing Unit Size: 1.8* 0.6* 0.95m

Overall size: 2.2m*2.68m*2m

Min. Site Area: 5m* 5m

Main Specification

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
