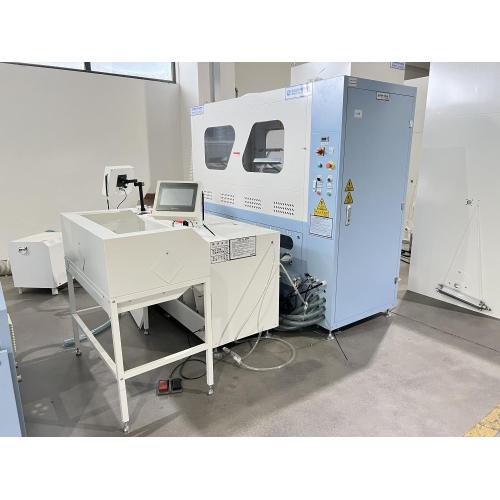

Easy Operation Down Filling Machine

2 tables of down filling machine are in one side to save space.

Increased one-touch operation in the down jacket filling machine, down-outing, down-going and peeling process can be one step; do not need press the button many times.

One-piece design of the weighing system makes that it can adjusts freely on back and forth, up and down, and convenient to install & maintain.

The weighting unit of down stuffing machine has added dedusting function; fluf can be cleared up immediately during the down-illing process for our down garment filling machine.

The built-in dust settling pocket has realized the independent integration of dust removal system under the table.

Because of the combination with Internet of Things, it has realized the following advantages: long-distance, actual time and rapid diagnosis, without door-to-door service and man-machine communication.

Details:

Brand: Bealead

Model: DF-2403X

Composed by: 1 feeding unit and 2 weighing units/ filling station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 1200-1600

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 10kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 2.1* 0.8* 2.1m

Weighing Unit Size: 1.8* 0.6* 0.95m

Min. Site Area: 5m* 6m

Main Specification

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
