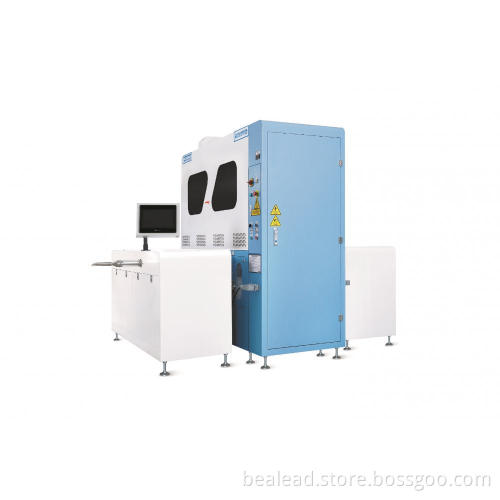

6 Scales Down Jacket Filling Machine

   So popular the machine is!

More faster, more accurate and more stable with 6 scales for each filling port of down filling machine, accuracy of down stuffing machine can reach to 0.01.

Automatic down filling machine which has double nozzles allows two workers operating at the same time.

Equipped with the dust removal system under the operation desk of down garment filling machine that can collect dust at filling port to keep working environment clean.

As well the down jacket filling machine is applied for fiber, can be used for fiber filling machine

Details:

Brand: Bealead

Model: DF-2602-X

Composed by: 1 feeding unit and 2 weighing units/ filling station

Filling Pipes: 2

Scales by filling pipe: 6

Fillings by hour: 1200-1600 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 12kg

Weighing Range: 0.2g- 20/32g

Accuracy: 0.01g

Feeding Unit Size: 2.1* 0.8* 2.1m

Weighing Unit Size: 1.8* 0.6* 0.95m

Min. Site Area: 5m* 6m

Main Specification

Accessories

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
