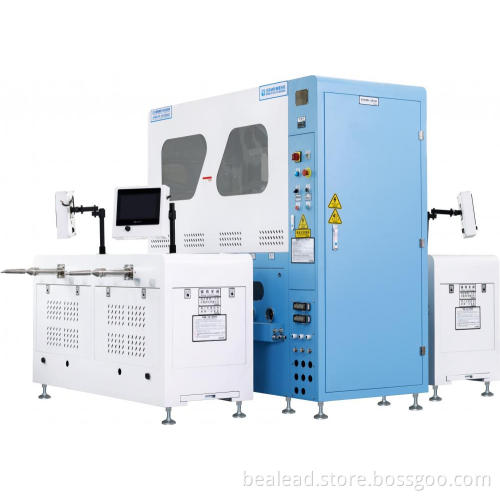

4 Nozzles Down Filling Machine

We R&D this four nozzles down filling machine, means four filling stations which allow four person working at same time, each filling pipe of down stuffing machine is supported by 4 scales, speed is faster.

Efficiency can be improved much more by the four pipes down garment filling machine which has dust removal under desk, down returning function, anti-static system and iron-removal device. Also we develop new functions, like independent weighing system and apportion big grams for down jacket filling machine.

It's our newest four nozzles high output down filling machine.

Details:

Brand: Bealead

Model: DF-4401-X

Composed by: 1 feeding unit and 4 weighing units/ filling station

Filling Pipes: 4

Scales by filling pipe: 4

Fillings by hour: 3000-3200 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 12kg

Weighing Range: 0.2g- 8g/20g

Accuracy: 0.01g

Feeding Unit Size: 2.1* 0.8* 2.1m

Weighing Unit Size: 1.8* 0.6* 0.95m

Min. Site Area: 5m* 6m

Main Specification

Accessories

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.

Our Factory

Exhibitions

CE Certificate
