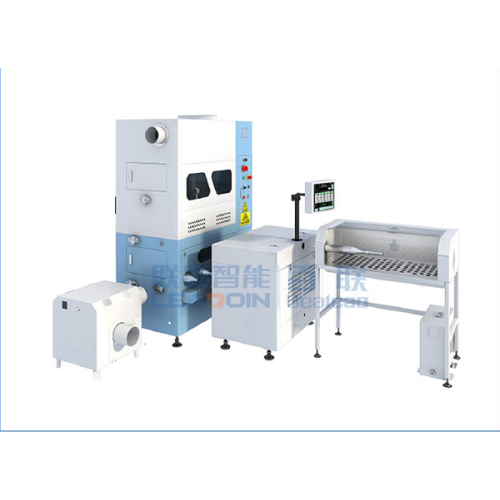

Auto Down Filling Machine

BL-1403X automatic down filling machine is our new concept  down garment filling machine, which is our best seller. This down stuffing machine has many advantages:

1. More efficiency and faster: 2-3 times faster than manual work, one worker can support 2-3 assembly lines

2. Accuracy filling, tolerance within 2%, Could fill like 0.26g,3.21g

3. Wide measure, the range of weighing can set 0.2-32 grams once to suit for filling both separate grids and normal grids

4. Patented design: breathable & non-breathable fabric is totally easily used, Solved down leaking problem

5. With triple weighing system, 30% faster than 2nd gerneration machine

6. Two workers can operate at the same time, can support 5-7 assembly lines

7. Excellent for extra slim Chamber, make out Perfect garment, very even/equal

We would like to you can order to us about high output down filling machine, if you want to know more details about down jacket filling machine, please contact to us.

Details:

Brand: Bealead

Model: DF-1403X

Composed by: 1 feeding unit and 1 weighing units/ filling station

Filling Pipes: 1

Scales by filling pipe: 4

Fillings by hour: 1000-1500 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 920kg

Filling Storage: 10kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 2.1* 0.8* 2.1m

Weighing Unit Size: 1.8* 0.6* 0.95m

Min. Site Area: 5m* 6m

Main Specification

Voltage	220V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	7.5KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1m³/min
Max. Power	2.5KW	Air Monitoring System	√
PPR Pipe	1 inch	Down Returning System	√
Pipe Distance	≤20m	Humidity Control System	√

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technicians for after sales service. They could answer you and service you at the first time you need.
