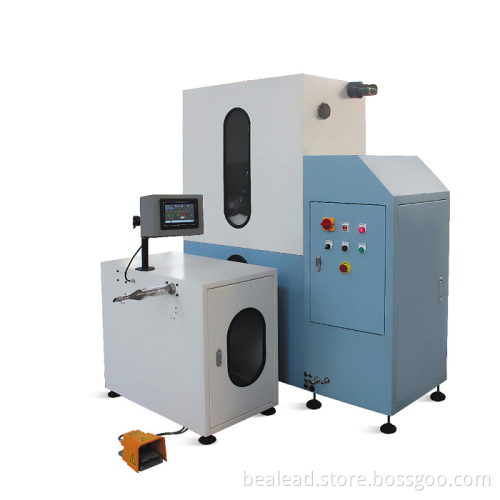

Automatic Down Feather Stuffing Machine

116B is 2nd Generation down filling Machine, 1 pipe model, supported by 2 weighing system. It's high efficient & labour saving, 2-3 times faster than manual work, one worker can support 2-3 assembly lines. Patented design of down outlet: easy for breathable & non-breathable fabrics.

Details:

Brand: Bealead

Model: 116B

Composed by: 1 feeding unit and 1 weighing unit/ filling station

Filling Pipes: 1

Scales by filling pipe: 2

Fillings by hour: 800 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 600kg

Filling Storage: 5kg

Weighing Range: 0.2g- 32g

Accuracy: 0.1g

Tolerance: 3%

Feeding Unit Size: 2.05* 0.85* 2m

Weighing Unit Size: 1.5* 0.5* 0.9m

Overall Size: 2.05* 1.35* 2m

Min. Site Area: 5m* 3m

Main Specification

 Accessories

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.
