Ski Jacket Filling Machine

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Supply Ability:	200 sets/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE/ISO 9001
Transportation:	Ocean
Port:	Shanghai

Product Description

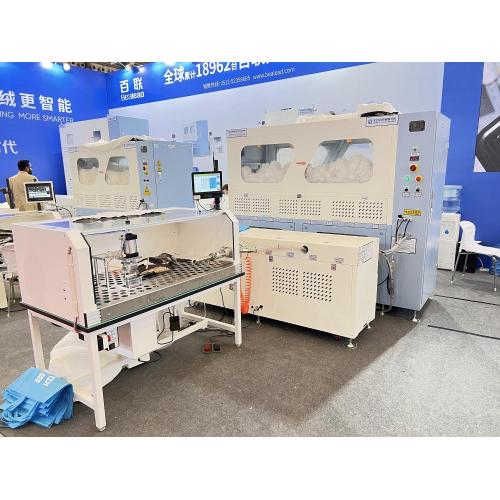

DF-2405X is our newest generation down garment filling machine, with 2 filling stations, allow 2 workers operate down filling machine at same time.

The range of single time of down stuffing machine: 0.2-20g, however automatic down filling machine has large gram apportion function so is capable of filling both large and small lattice panels.
Touch screen design easily, enables data storage, on-time insight and data revision.

Details:

Brand: Bealead

Model: DF-2405X

Composed by: 1 feeding unit and 2 weighing units/ filling station

Filling Pipes: 2

Scales by filling pipe: 4

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 800kg

Filling Storage: 15kg

Weighing Range: 0.2g- 20g

Accuracy: 0.01g

Feeding Unit Size: 2.1* 0.9* 2m

Weighing Unit Size: 1.55* 0.57* 1m

Overall Size: 2.1* 4.4* 2m

Min. Site Area: 5m* 6m

Main Specification

Voltage	220V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	7.5KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1m³/min
Max. Power	2.5KW	Air Monitoring System	√
PPR Pipe	1 inch	Down Returning System	√
Pipe Distance	≤20m	Humidity Control System	-

Ski Jacket Filling Machine

Details:

Main Specification
