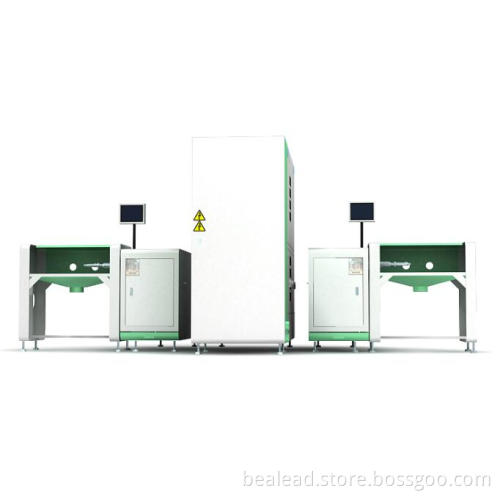

High-Performance Double Filling Station Machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Supply Ability:	200 sets/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	CE/ISO 9001
Transportation:	Ocean
Port:	Shanghai

Product Description

Third generation down filling machine with double filling stations allowing 2 independent filling operations at same time; Fast & Accurate has data transfer, air pressure monitoring and down returning functions.

The patented design of down outlet resolves the filling problems of airtight fabrics and special soft fabrics;
The range of single time: 0.2-32g, capable of filling both large and small lattice panels;
The user-friendy touch screen design enables data storage, on-time insight and data revision;
One machine has two down filling ports, is operated by two workers and is able to support the normal operation of five to seven assembly lines;
The buile-in auto humidity detector can be adjusted automatically and can ensure that the humidity coefficient remains within the scope required by Chinese GB standards during the process of down-filling;
The built-in auto down-changing device, which is time-saving and labor-saving, efficient and rapid, realizes down-changing by pressing a single key;

Details:

Brand: Bealead

Model: 2301

Composed by: 1 feeding unit and 2 weighing units/ filling station

Filling Pipes: 2

Scales by filling pipe: 3

Fillings by hour: 1000 lattices

Application: Apparel, Commodity, Textiles

Material Application: 50%- 90% down

Weight: 800kg

Filling Storage: 10kg

Weighing Range: 0.2g- 32g

Accuracy: 0.01g

Feeding Unit Size: 2.1* 0.9* 2m

Weighing Unit Size: 1.55* 0.57* 1m

Overall Size: 2.1* 4.4* 2m

Min. Site Area: 5m* 6m

Main Specification

Voltage	220V	Air Tank	≥1m³
Air Pressure	0.6- 0.8MPa	Air Compressor Power	7.5KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥1m³/min
Max. Power	2.5KW	Air Monitoring System	√
PPR Pipe	1 inch	Down Returning System	√
Pipe Distance	≤20m	Humidity Control System	-

Accessories
