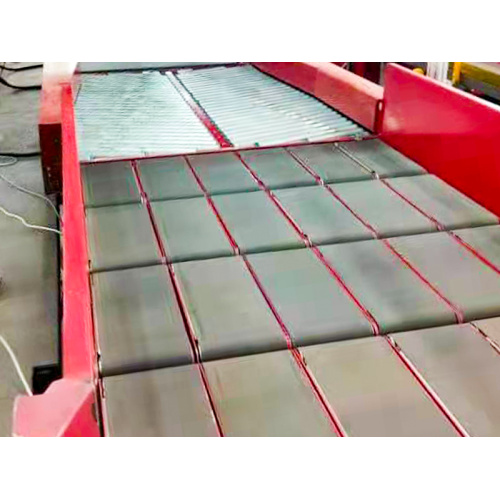

Automatic Parcel Singulator Machine

Singulator is mainly installed in the front end of sorting system to pre-process the single package separation.

Separate the left and right side-by-side packages before and after so that the packages will move forward and backward on the subsequent conveyor belt of logistic sorting machine.

Expand the packages that are close together before and after which are going to logistic sorting line.

When a mess of parcles unloaded from cars, you may have problems that how to deliver these packages to sorter easily. Now we have parcel singulator to solve the problem which is able to gap and align packages. The equipment solve the problem of placing packages manually and will become a hot sale in the industry in the coming year.

Details

VISUAL SYSTEM：3D INDUSTRIAL CAMERA

SOFTWARE: SINGEL-PIECE SEPARATOR SYSTEM

PACKAGE MAX SIZE: 1000*700*700MM

PACKAGE MIN SIZE: 100*100*50MM

PACKAGE MAX WEIGHT: 30KG

PACKAGE MIN WEIGHT: 100G

OUTPUT NUMBER: 32

SPEED OF MAIN LINE: 0.5-2(CUSTOMIZABLE)

OPERATING TEMPERATURE: -10-50℃

EFFICIENCY: 6000PCS/H

SEPERATION SUCCESS RATE: ≥99%

VOLTAGE：380V

MAX POWER：18KW
