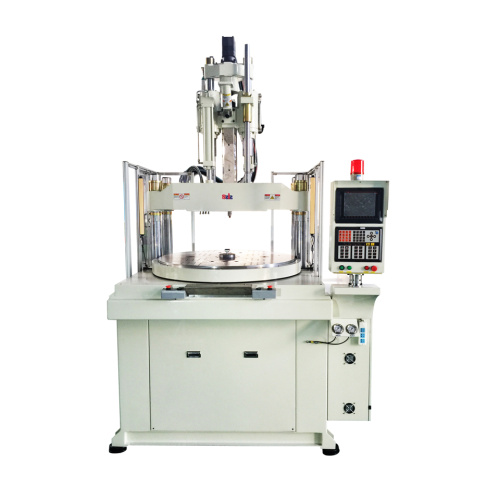

Injection Rotary Table Machine
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500 sets/per year |
| Supply Ability: | 500 sets/per year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001,CE |
| Transportation: | Ocean |
Series feature:
Vertical injection vertical clamping,adopt rotary table design,improve production capacity.
Clamping force:35-500 Tons Injection volume:39-1000g
Features of product
1.Standard configurations are the entire computer, the electro-hydraulic proportional control system, high degree of automation, special configuration for users with computerized frequency conversion power- saving control system. These series products are high efficiency, power-saving, stable and reliable.
2.Injection volume and the stroke of mould-open&close can be calculated and controlled precisely by electronic ruler , mould-open&close is a multi-polar speed regulation.
3.Injecting, preplasticating screw and feeding cylinder are nitrogen treated, with abrasion resistant.
4. Heating plate uses cast aluminum overall heating, computer PID control, precision temperature; injecting, preplasticating feeding cylinder use hot oil heating method, stable and even.
5. Infrared light screen protection devices ensure operation safe.
6. Equipped with moving mould, ejection , mechanical tip and core devices.
