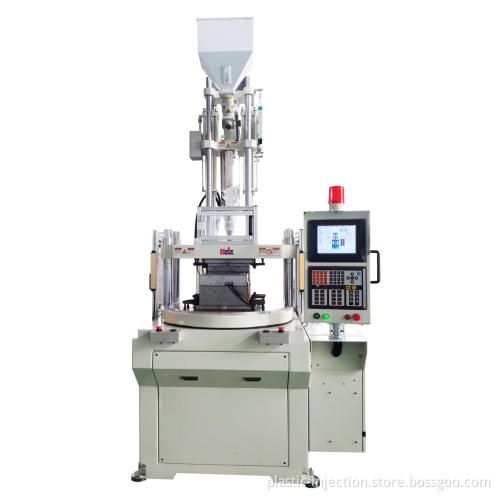

Rotary table vertical injection molding machine

Vertical clamping vertical injection, suitable for multi-purpose plastic molding and injection molding process of the insert.

Disk design, rotating stable, accurate positioning, pick and place convenient pieces.

Injection speed height 350mm / s, for precision injection molding industry.

Customized according to customer needs, clamping force 20T-350T, injection weight 45-549 grams.

Features & Applications:
1. Rotary table makes a 180-degree horizontal rotation, which enables operator to take off product or insert accessory
    at the same place, easy and efficient.
2. Rotary table locked by steady pin, ensure it will stop at a precise position, so that upper mold and under mold will
    clamping accurately.
3. The rotary table platen is controlled by independent Servo motor, it has high positioning accuracy as 0.002 degree.
4. Auxiliary equipment for taking-off product and inserting accessory, can be customerized, to achieve fully automatic
    production.
5. General rotary table with 2 stations, 3/ 6 stations are optional for higher efficiency improved.
