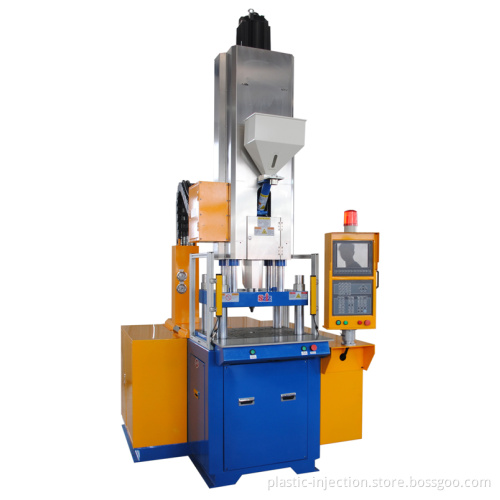

Hybrid injection molding machine for precision gear
- Payment Type:
- T/T
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 35 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100 sets/per year |
| Supply Ability: | 100 sets/per year |
| Payment Type: | T/T |
| Incoterm: | FOB,CIF |
| Certificate: | ISO9001,CE |
| Transportation: | Ocean |
Injection mechanism imported servo motor, with high intensity axial drive mechanism to perform the injection unit injection, holding pressure, back pressure, shot back, feeding and other activities.
Clamping mechanism using the picture-a single-cylinder direct pressure clamping, clamping force balance and stability, independent property rights over valve assembly displacement (1100) from the high-pressure time of just 0.2 to 0.3 seconds
Servo-hydraulic machine hydraulic system uses motor execution, low noise, fast response, energy-saving 30-60%
Industrial machine assembly LNC control system, powerful, smooth operation
Features:
Injection speed 0-1000mm / s, injection pressure of 3750kg / cm, the absolute value of the numerical control, high rigidity, low inertia, the perfect curve monitoring
Injection product areas:
For high precision injection products, especially more prominent in thin pieces of injection molding, the current mobile phone customers, mainly in digital products (connector) Industry
