Die Mould EDM Sinker Machine

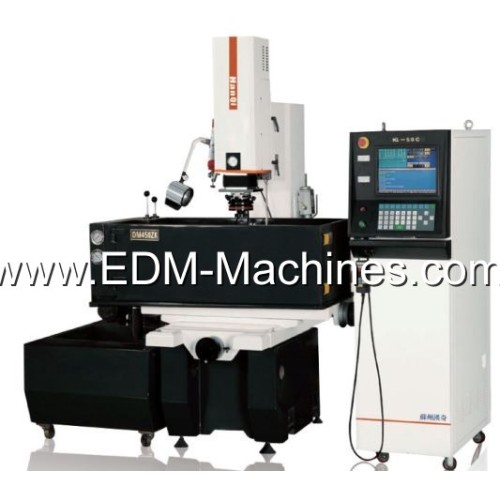

ZNC Die EDM Sinker Machine DM550ZK Machine

Low cost die EDM sinker machine

Easy to operate

Good enough machine body

Rich function control system

Machine Construction

• The machine is designed by special CAD software featured good structure and high precision
• Z axis adopt high precision SANYO DC servo motor
• X/Y/Z axis adopt Taiwan ball screw
• X,Y axis adopt high precision bearing
• Oil pump imported from Italy with big power
• It suits to process cavity, hole and special shape by copper, graphite, steel, tungsten steel, hard alloy steel material

Controller System

• Manual type: input current and parameters according your experience
• Automatic processing type: machine automatic processing according required roughness, machining area size and depth
• Intelligent editor type: the system will set parameters after you input electrode shape, electrode material, workpiece material, processing area size, roughness and depth
• System adjust parameters automatically if machining is not steady
• Automatic checking carbon deposition and adjust parameters
• Multiple set selections to process the thin slice and large-sized workpiece
• Fire-prevention and liquid level control automatically
• Metric and Inch

ZNC Die Sinking EDM DM550ZK Specification

Item                                      DM550ZK

Machine Size                        4000*2500*2600mm

Machine weight                    2500kg

Table travel (X, Y, Z)            550*450*250mm

Z axis twice travel                 300mm

Table size                             800*500mm

Electrode plates to the table distance      820mm

Worktable loading weight                         1000kg

Work tank size                      1080*660*400mm

Max Current                          50A

Tank size                              1300*770*550mm

Max processing efficiency     ≥600 mm² / min

Minimum electrode wear       ≤0.1%

Best surface roughness        ≤0.2um Ra

Maximum electrode weight    100kg

Controller                              HQ-50C

Power                                    11KW
