Big Taper Cutting Wire EDM Machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

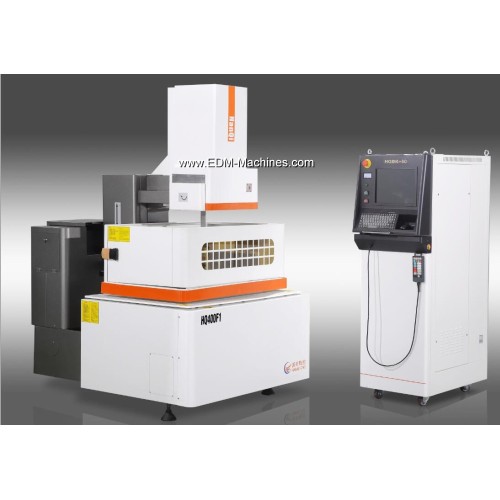

Big Taper Cutting Wire EDM Machine Specification

±3°/80mm

±10°/800mm

±15°/80mm

	HQ400F3	HQ500F3	HQ600F3	HQ800F3
Main machine
Machine dimension (L×W×H)	1680×1200×2300 mm	1810×1350×2300 mm	2100×1450×2400 mm	2300×1600×2400 mm
Machine weight	2000 kg	2500 kg	3000 kg	3800 kg
Travels(XY)	400×320 mm	500×400 mm	630×500 mm	800×630 mm
Travel Z	300 (electrical) mm	300 (electrical) mm	300 (electrical) mm	300 (electrical) mm
U × V travels	36×36 mm	36×36 mm	36×36 mm	36×36 mm
Size of worktable	740×470 mm	800×510 mm	910×680 mm	1140×750 mm
Size of work tank	980×550 mm	1180×710 mm	1310×795 mm	1400×940 mm
X, Y axes resolution	0,001 mm	0,001 mm	0,001 mm	0,001 mm
Max cutting taper	±15° / 80 mm	±15° / 80 mm	±15° / 80 mm	±15° / 80 mm
Max cutting thickness	250 mm	250 mm	250 mm	250 mm
Workpiece
Max workpiece size	960×530×320 mm	1160×690×320 mm	1290×775×320 mm	1380×920×320 mm
Max workpiece weight	400 kg	500 kg	600 kg	800 kg
Construction
Work type	Flushing	Flushing	Flushing	Flushing
Machining technology
Max machining current	10 A	10 A	10 A	10 A
Max cutting speed	>200 mm²/min	>200 mm²/min	>200 mm²/min	>200 mm²/min
Multiple cutting precision	≤ ± 0.0025mm	≤ ± 0.0025mm	≤ ± 0.0025mm	≤ ± 0.0025mm
Best surface roughness (Ra)	≤0.8µm	≤0.8µm	≤0.8µm	≤0.8µm
Filtration	Brass WEDM type filter	Brass WEDM type filter	Brass WEDM type filter	Brass WEDM type filter
CNC control system
Display	15' color LED inch	15' color LED inch	15' color LED inch	15' color LED inch
Programmable axes	XYUV-axes (simultaneous 4 axes control)	XYUV-axes (simultaneous 4 axes control)	XYUV-axes (simultaneous 4 axes control)	XYUV-axes (simultaneous 4 axes control)
Operation system	Windows XP	Windows XP	Windows XP	Windows XP
Interpolation	Linear / circle	Linear / circle	Linear / circle	Linear / circle
Interface	USB & RS232 & LAN interface	USB & RS232 & LAN interface	USB & RS232 & LAN interface	USB & RS232 & LAN interface
Others
Wire diameter	Ø0,12 - Ø0,2 mm	Ø0,12 - Ø0,2 mm	Ø0,12 - Ø0,2 mm	Ø0,12 - Ø0,2 mm
Auto wire threading system	No	No	No	No
Power supply system
Power input	2.3 KW	2.8 KW	3.0 KW	3.5 KW
Power source	380V (±10%) 50Hz~60Hz	380V (±10%) 50Hz~60Hz	380V (±10%) 50Hz~60Hz	380V (±10%) 50Hz~60Hz
