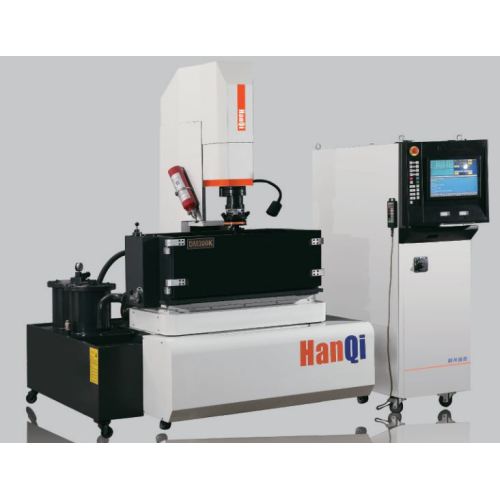

Low Price CNC EDM Spark Discharge Machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Fine Finishing CNC EDM Sinker Machine Specification

Item	Unit	DM300K	DM350K	DM400K	DM400JK
Machine Size	mm	130013002241	133315862340	130014002291	150014002500
Machine Weight	kg	2000	2200	2200	1700
Machine Power	kw	9	9	9	9
Working area
Worktable Size	mm	600*400	600*400	700*400	700*400
Loading	kg	400	400	500	300
Machining area Size	mm	950620360	990640450	1280700550	1080660400
Distance from electrode chuck to worktable	mm	565	580	600	680
X,Y,Y Travel	mm	300210270	350250270	400300320	400300450
Power
Max Current	A	50	50	50	50
Max electrode weight	kg	25	50	50	50
Max speed	mm²min	≥600	≥600	≥600	≥600
Drive type		Digital AC servo	Digital AC servo	Digital AC servo	Digital AC servo
Min electrode wear rate		0.05%	0.05%	0.05%	0.05%
Roughness	um	Ra≤0.1	Ra≤0.08	Ra≤0.1	Ra≤0.1
Min drive unit	1um	1um	1um	1um	1um
System
Coordinate Quantity	60		60	60	60
Input	Touch screen, USB
Display	15-inch LCD screen (TFT-LCD), CRT
Each Axis Compensation	Steps error compensation, backlash compensation for each axis separately
Each axis Resolution	0.4um
Technology Standards	steel / steel, fine steel/steel, graphite / steel, copper thin copper tungsten / steel, copper and tungsten / carbide copper / aluminum, Graphite / heat-resistant alloys, graphite / titanium, creating a processing copper / steel
Technology Standards
Interpolation Method	Registration function 1000 conditions (C000-C999)
CNC axis	Three axis linkage (standard),axis four linkage (optional)
Input Range	+9999.999~-9999.999
