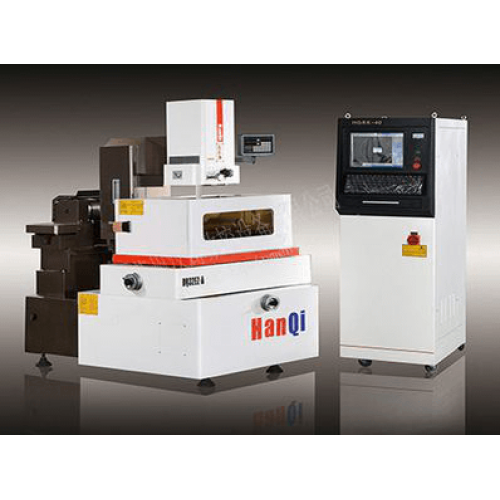

Fast Speed Cutting Wire EDM Machine
Your message must be between 20 to 2000 characters
Contact Now
Steps Motor driver Wire Cut EDM Machine Specification
| Main machine | |
| Travels(XY) | 800×630 mm |
|
Travel Z |
300 (electrical) mm |
|
U × V travels |
36×36 mm |
|
Size of worktable |
1140×750 mm |
|
Size of work tank |
1400×940 mm |
|
X, Y axes resolution |
0,001 mm |
|
Max cutting taper |
±3° / 80 mm thickness |
|
Max cutting thickness |
320 mm |
| Workpiece | |
| Max workpiece size | 1380×920×320 mm |
| Max workpiece weight | 800 kg |
| Construction | |
|
Work type |
Flushing |
|
Machining technology |
|
|
Max machining current |
10 A |
|
Max cutting speed |
>200 mm²/min |
|
Multiple cutting precision |
≤ ± 0.005mm |
|
Best surface roughness (Ra) |
≤1.0µm |
|
Filtration |
Normal type filter |
|
CNC control system |
|
|
Display |
15' color LED inch |
|
Programmable axes |
XYUV-axes (simultaneous 4 axes control) |
|
Operation system |
Windows XP |
|
Interpolation |
Linear / circle |
|
Interface |
USB & RS232 & LAN interface |
| Main machine | |
| Win diameter | Ø0,12 - Ø0,2 mm |
| Auto wire threading system | No |
| Power supply system | |
| Power input | 2.3 KW |
|
Others |
|
|
Power source |
380V (±10%) 50Hz~60Hz |
|
Machine dimension (L×W×H) |
2300×1600×2400 mm |
|
Machine weight |
3800 kg |
