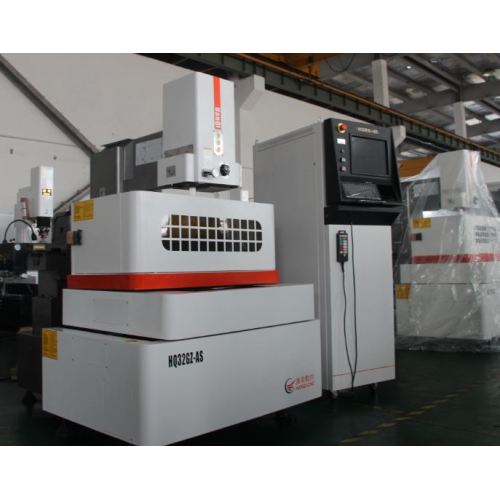

HANQI HQ32GZ-AS CNC Wire Cutting EDM Machine
By Hanqi Wire Cut EDM Machine you are able to process all the conductive objects, such as complex shape moulds, cam wheels, ship machinery parts , automobile parts, aircraft parts, gears, high precision plate work and all difficult to process tough objects. You can cut plane, bevel, and the top and bottom different shaped work pieces with very big size workpiece. Our Wire Cut EDM machine is of high performance and low cost, and leads the industry in Molybdenum wire cutting machines
Full cooperated with AgieCharmilles, original GF technology support
HQ32GZ-AS, HQ40GZ-AS, HQ50GZ-AS, HQ63GZ-AS, HQ80GZ-AS model
Wire Cut EDM Machine Specification
Main machine
Travels(XY) 400×320mm
Travel Z(electrical) 300mm
U × V travel 36×36mm
Worktable size 740×470mm
Water tank size 980×550mm
X, Y axes resolution 0.001mm
Max cutting taper ±3° / 80 mm thickness
Max cutting thickness 320mm
Wire diameter ￠0.12 - ￠0.2mm
Auto wire threading system No
Max workpiece weight 500kg
Work type Flushing
Filtration system Brass WEDM type filter
Machining technology
Max machining current 10A
Max cutting speed >200 mm²/min
Multiple cutting precision ≤ ± 0.0025mm
Best surface roughness (Ra) ≤0.7µm
CNC control system
Operation system AutoCut system base on Windows XP
Display 15' color LED inch
Programmable axes XYUV-axes (4 axes simultaneous)
Interpolation Linear / circle
Interface USB & RS232 & LAN interface
Driver type AC servo drive
Power supply system
Power input 2.3 KW
Others
Power source 380V (±10%) 50Hz~60Hz
Machine size (L×W×H) 1680×1200×2300 mm
Machine weight 2000 kg
Machine key parts
| Linear guideway | HIWIN P3 grade linear guideway |
| Ball screw | HIWIN silver C3 grade precision ball screw |
| Wire drum | HIWIN P3 grade linear guideway |
| U, V axis taper device | HIWIN P3 grade linear guideway |
| Bearings | Germany NEY precision bearing |
| Computer | Special industrial computer |
| Display | Industrial Display |
| Electrolytic capacitors | Japan Ruby or King Kong |
| X, Y axis servo motor | Japan Panasonic AC servo motor |
| Wire guider | Special type diamond guider for wire |
| Filtration systems | Brass WEDM type water filter |
| Z-axis electric lift | Electric type |
| Guide wheel | Special thickness guide wheel |
| Multifunction fixture | Brass WEDM type fixture |
| High-strength body structure | T sharp machine bed |
| Wire constant tension device | 2 sets constant tension device |
| High frequency pulse power | Japan technology, high speed, low roughness |
| Electrical | Schneider |
Wire Cut EDM Machine Cutting Sample/Application
Wire Cut EDM Machine System AutoCut introduce
AutoCut System Operation Steps
1th step: Make drawing in AutoCAD or load drawing from flash USB
2th step: Choose suitable parameters from datebase
3th step: Cut the drawing
HANQI Wire Cut EDM Controller
