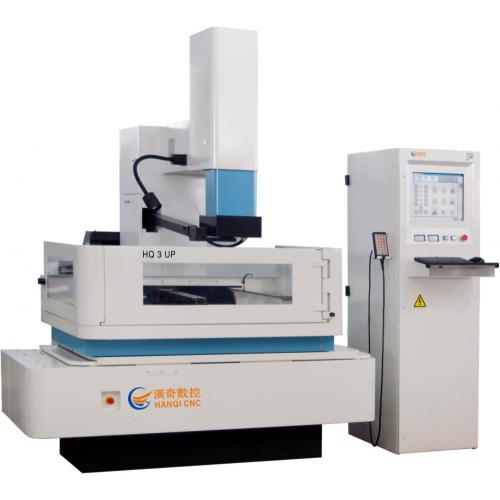

CNC Wire Cut EDM Machine HQ3UP
We are FW molybdenum wire cut EDM machine producer, we are in charge this wire EDM machine production, sales, service, training and parts supply
HQ xU series machines have unique mechanical structure of keeping wire tension constant, frequency converter for controlling wire speed. With new generator, multi-cuts can be done, cutting time has been saved and better surface finish has been achieved.
- Orginal GF AgieCharmilles FW series
- Windows XP OS, easy to use
- Embedded 3D CAD/CAM (option), prepareprogram in parallel with cutting
- The maximum capacity of program files is 512KB
- Multi-cuts, best surface finish Ra:1.0μm
- Advanced generator, high cutting speed
- Plenty of corner strategy
- High rigidity design, good precision consistency
- Adaptive dynamic wire tension control
Wire is installed manually on the traditional machine, but wire can be installed automatically on HQ xU series machines for saving time and increasing cutting efficiency.
CNC Wire Cut EDM Machine HQ3UP Specification
Specification
Model
HQ1UP
HQ2UP
HQ3UP
Machine
X,Y,Z travel
mm
350×320×150
500×400×250
630×500×350
U,V travel
mm
±18
±18
±22
Cutting degree
°/mm
±10/80°
±10/180
±10/250
Wire diameter
mm
0.12-0.20
0.12-0.20
0.12-0.20
Machine size
mm
1625×1225×1730
1790×1715×2050
2310×1940×2408
Controller size
mm
935×685×1865
935×685×1865
935×685×1865
Machine weight
kg
1810
2680
3500
Working tank
Workpiece size
mm
630×400×200
800×500×300
930×650×400
Loading
kg
300
600
800
Worktable size
mm
650×420
800×500
930×650
Working tank size
mm
960×640×120
1200×740×150
1360×930×150
Working fluid tank
Filter fineness
μm
10
Volume
L
50
Pulse power
Max cutting speed
mm2/min
180
Best roughness
μm
≤1.0
Control system
Hardware
Industrial PC
Communication interface
USB.LAN.RS232
Axis control
4 axis simultaneous
ISO code
G and M code
Language
Chinese-English- Spanish- Portuguese-Russia
CNC Wire Cut EDM Machine in Exhibition
CNC Wire Cut EDM Machine Application
CNC Wire Cut EDM Machine System Introduce
Machine setup
- Limit, move, edge find, reference, halfway, center find, spark alignment, flushing, wire run and other functions
- Including move function on the handbox
- Six user coordinate systems
File Preparation
- Creat new folder and NC files. Copy/paste/delete/rename the file
- Copy files by USB/LAN/RS232
- Edit the NC files
- Graphical check for NC files
Erosion process
- Select NC file for machining
- Erosion setting
- Display erosion status and erosion time in real time
- Modify parameters during the machining
- Erosion process trace with graphics
- Manual erosion
