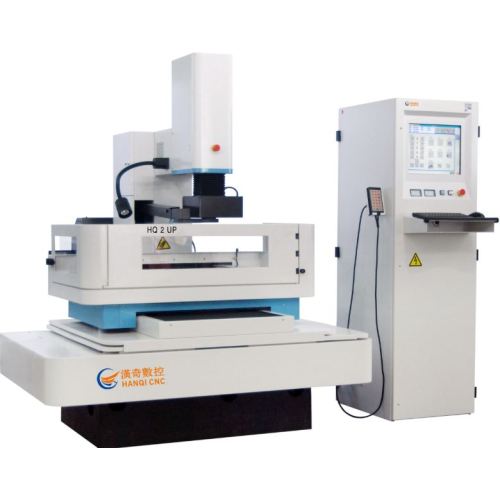

CNC Wire Cut EDM Machine HQ2UP

We are FW molybdenum wire cut EDM machine producer, we are in charge production, sales, service, training and parts supply

Orginal GF AgieCharmilles FW series
Windows XP OS, easy to use
Embedded 3D CAD/CAM (option), prepareprogram in parallel with cutting
The maximum capacity of program files is 512KB
Multi-cuts, best surface finish Ra:1.0μm
Advanced generator, high cutting speed
Plenty of corner strategy
High rigidity design, good precision consistency
Adaptive dynamic wire tension control

Wire is installed manually on the traditional machine, but wire can be installed automatically on HQ xU series machines for saving time and increasing cutting efficiency.

HQ xU series machines have unique mechanical structure of keeping wire tension constant, frequency converter for controlling wire speed. With new generator, multi-cuts can be done, cutting time has been saved and better surface finish has been achieved.

AgieCharmilles FW Wire Cut EDM

CNC Wire Cut EDM Machine HQ2UP Specification

Specification
Model		HQ1UP	HQ2UP	HQ3UP
Machine
X,Y,Z travel	mm	350×320×150	500×400×250	630×500×350
U,V travel	mm	±18	±18	±22
Cutting degree	°/mm	±10/80°	±10/180	±10/250
Wire diameter	mm	0.12-0.20	0.12-0.20	0.12-0.20
Machine size	mm	1625×1225×1730	1790×1715×2050	2310×1940×2408
Controller size	mm	935×685×1865	935×685×1865	935×685×1865
Machine weight	kg	1810	2680	3500
Working tank
Workpiece size	mm	630×400×200	800×500×300	930×650×400
Loading	kg	300	600	800
Worktable size	mm	650×420	800×500	930×650
Working tank size	mm	960×640×120	1200×740×150	1360×930×150
Working fluid tank
Filter fineness	μm	10
Volume	L	50
Pulse power
Max cutting speed	mm2/min	180
Best roughness	μm	≤1.0
Control system
Hardware		Industrial PC
Communication interface		USB.LAN.RS232
Axis control		4 axis simultaneous
ISO code		G and M code
Language		Chinese-English- Spanish- Portuguese-Russia

CNC Wire Cut EDM Machine in Exhibition

China Machine Tools Exhibition

HANQI CNC exhibition

CNC Wire Cut EDM Machine Application

Wire Cut EDM Machine Cutting Sample

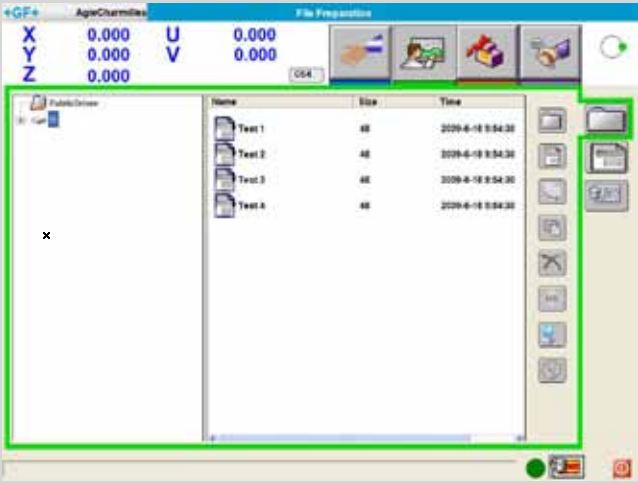

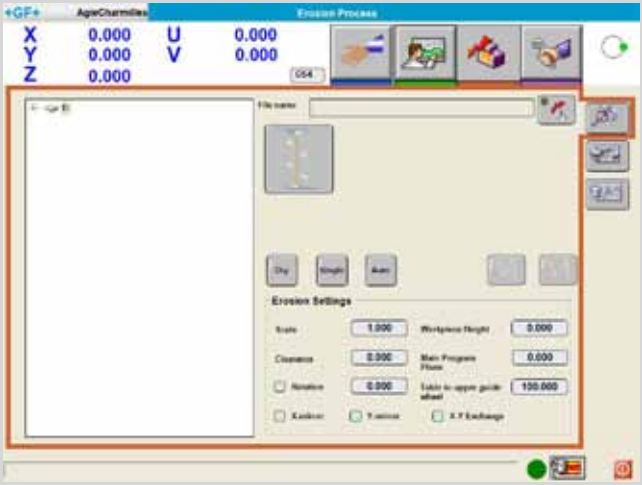

CNC Wire Cut EDM Machine System Introduce

Machine setup

Limit, move, edge find, reference, halfway, center find, spark alignment, flushing, wire run and other functions
Including move function on the handbox
Six user coordinate systems
