Heavy Duty Machining Center

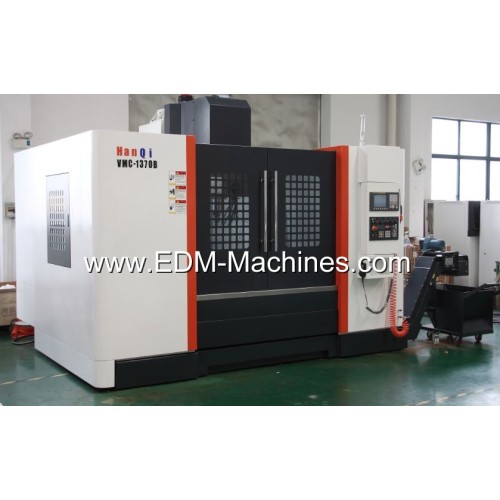

CNC Machine Center VMC1370B

Hanqi VMC CNC machining center is necessarily if you need highly efficient machining. It is your machining solution.

This type machine supply high feeding speed, also provide high accuracy of positioning and repeatability. It is not only suitable for production line application, it is also good at smaller factories and machine shops.Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed.

Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life.

The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment.The centralized control panel employs a touch sensing screen for user-friendly operation. The humanized designed control panel has an elegant appearance.

Specification

Item                                  VMC1370B

Machine Size(L*W*H)       4000*3500*3100mm

Machine Weight               10000kg

Table Size                        710*1400mm

T-slot spacing                  5-18H8*152.5mm

Table Loading                  1000kg

Spindle Taper                  BT50

Spindle RPM                    6000rpm

Spindle power                   15/18.5kw

X/Y/Z Travel                     1300/700/650mm

Distance spindle to table  150-800mm

Feed Speed                     12000mm/min

Cutting Feed Speed         15000mm/min

Position Precision             ± 0.005mm

Re-position Precision       ± 0.003mm

Distance spindle center to column       785mm

Part List

Name                           Origin

The main cast              Quality resin sand casting

Spindle                         Taiwan Royal

Spindle / 3 axis motor   Mitsubishi

Ball screw and nut        Taiwan Hiwin/PMI

X / Y axis guideway       PMI/Rexroth

Ball screw bearings       NSK

Coupling                        Germany R+W

Heat exchanger             Taiwan Points

Control System              Mitsubishi

Hand controller              Japan NEMICON

Relays                           Japan Omron

Electromagnetic valve   Taiwan AIRTAC

Low voltage control        France Schneider

Power Supply                Taiwan Meanwell

Pressure cylinder          Taiwan HaoCheng

Lubrication System       Japan HERG

VMC Machine Workshop
