VMC Machining Center

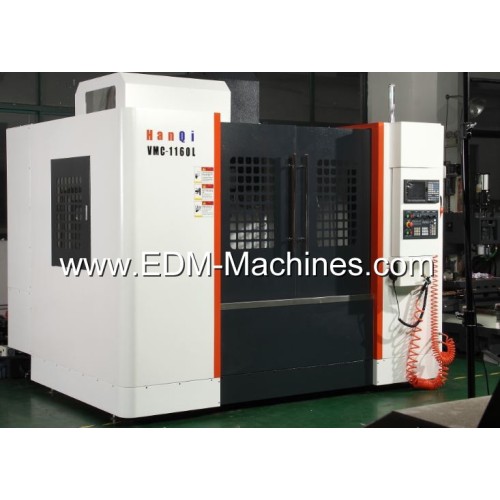

CNC Machining Center VMC850L

VMC series linear guideway vertical machining center is a new conception against increasing market competition. They have a wide range of high precision applications that converting middle-small size, plate, chucking, housing parts as well as die mold tooling. Hanqi CNC machine provides you various solutions for your factory metalwork process.

1. High rigidity machine is developed by applying 3D-CAD and FEM

2. excellent damping properties

3. high rigidity

4. excellent thermal stability

5. high-speed advance and rapid feed for a significantly increased machine efficiency

6. constant accuracy and stability ensured by premium preloaded ball screws with integrated cooling

7. milling spindle with closed cooling circuit for maximum precision and durability at high speed machining operation

8. superior mechanical properties of the total component package ensure longer tool life

9. easy accessibility of work table for easy setup and tooling

CNC Machining Center Specification

Item                                  VMC850L

Machine Size(L*W*H)       2650*2300*2700mm

Machine Weight               6500kg

Table Size                        500*1000mm

T-slot spacing                  5-18H8*90mm

Table Loading                  450kg

Spindle Taper                  BT40

Spindle RPM                    8000rpm

Spindle power                   5.5/7.5kw

X/Y/Z Travel                     800/500/500mm

Distance spindle to table  110-610mm

Feed Speed                     24000mm/min

Cutting Feed Speed         10000mm/min

Position Precision             ± 0.005mm

Re-position Precision       ± 0.003mm

X/Y/Z ball screw                40*12mm

CNC Machining Center Part List

Name                           Origin

The main cast              Quality resin sand casting

Spindle                         Taiwan Royal

Spindle / 3 axis motor   Mitsubishi

Ball screw and nut        Taiwan Hiwin/PMI

X / Y axis guideway       PMI/Rexroth

Ball screw bearings       NSK

Coupling                        Germany R+W

Heat exchanger             Taiwan Points

Control System              Mitsubishi

Hand controller              Japan NEMICON

Relays                           Japan Omron

Electromagnetic valve   Taiwan AIRTAC

Low voltage control        France Schneider

Power Supply                Taiwan Meanwell

Pressure cylinder          Taiwan HaoCheng

Lubrication System       Japan HERG

VMC Machine Workshop
