Four Rope Scissor type grab bucket
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu,China |
|---|---|
| Productivity: | 200 |
| Supply Ability: | 60piece/Year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | CE,3C,ISO9001,SGS |
| Transportation: | Ocean,Land,Air |

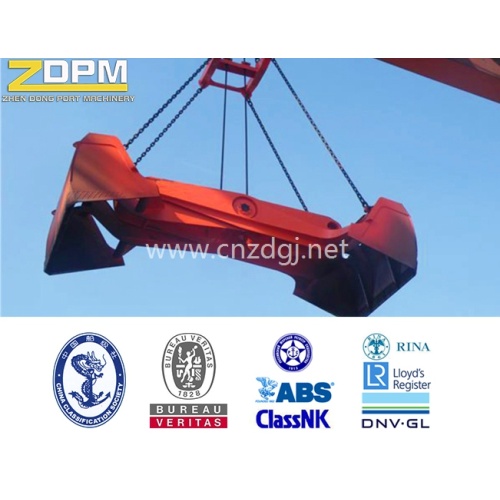

Four Rope scissor type grab bucket
Technical Features
With its extremely efficient design, the Scissors grab combines a favourable distribution of forces in the construction with the advantages of easy operation.
Scissors grabs stand out thanks to their excellent digging and filling capabilities, extremely short cycle times, long life expectancy and very low maintenance costs.
While designing the Scissors grab, we took extreme working conditions and high occupancy degree of the installation into account.
Specification
|
Type&Size |
Rated starting weight(t) |
Grab volume (Dome)(m3) |
Bulk material (t/m3) |
Dead weight(t) |
Dimensions (mm) |
Diameter of Sheave (mm) |
Use length (m) |
Dimaeter of wire rope (mm) |
||||
|
A |
B |
C |
D |
E |
||||||||
|
CS16[4]5.5J |
16 |
4 |
2.5 |
5.5 |
4325 |
4475 |
2675 |
4590 |
2000 |
∅560 |
10 |
∅26 |
|
CS20[5]6.6J |
20 |
5 |
2.5 |
6.5 |
4845 |
500 |
2885 |
5110 |
220 |
∅650 |
11.5 |
∅28 |
|
CS25[6.5]8.3J |
25 |
6.5 |
2.5 |
8.3 |
5450 |
5600 |
3200 |
5730 |
2350 |
∅720 |
12.5 |
∅32 |
|
CS32[8]11J |
32 |
8 |
2.5 |
11 |
6140 |
6290 |
3400 |
6400 |
3600 |
∅800 |
14.5 |
∅36 |
|
CS40[10.2]13.5J |
40 |
10.2 |
2.5 |
13.5 |
6920 |
7070 |
3660 |
7200 |
2750 |
∅880 |
16 |
∅40 |
|
CS52[13]17J |
52 |
13 |
2.5 |
17 |
7785 |
7935 |
3965 |
8065 |
300 |
∅920 |
18 |
∅44 |
|
CS63[16.5]21J |
63 |
16.5 |
2.5 |
21 |
8600 |
8815 |
4300 |
8930 |
3300 |
∅1120 |
20 |
∅48 |
Packaging & Delivery
Packaging Details: Mechanical part packing by plastic bag, electric parts by wooden box or standard exporting packing/Electrical and other parts are packaged by high quality plywood crates, main beams are packaged by Plastic Film.
Delivery Detail: Within 30 days after received your advance payment.
About us
ZDPM is one of the leading manufacturers of 60,000 square feet with dedicated, licensed and certificated staff, product range such as marine cranes, grabs, container spreaders, port cranes, crane clamps, hoppers and other spare parts.
ZDPM have got the SGS, CCS, BV, CE, ABS, ISO9000: 2008, ISO14001: 2004, OHSAS and other certifications, also accept third party inspection, such as SGS Factory test etc.
Auto CAD, 3DMax, Math CAD, Solid Works, ANSYS and SAP2000 Advanced.
16 months warranty after installation and commissioning unless the human damage factors.
24/7/365 day service, 2 years spare parts provided for better maintenance.
ZDPM committed not only supply high quality, on time delivery, reliable after sales service, but also offer the most competitive prices. Welcome to visit our factory!
Product Show
FAQ
Pls kindly send us your detailed specifications as follow if you are interested in our grabs.
1. What's the lifting material?
Tips: Grain, Sulfur, Chemical fertilizer, steel scrap, timber, coal mine, iron mine or garbage?
2. What's the cubage of the grab?
3. Crane Tone (The tonne of the crane ) or what kind of the crane that the grab working with?
4. What's the maximum lifting weight of the crane?
5. what is the grab grasp material density? (t/m3 )
6. If possible could you show us a pic or send us your tech drawing for our info?
7. What's the working environment?
8. Your nearest port: Tips: We quote CIF price need the port. FOB price please note FOB
