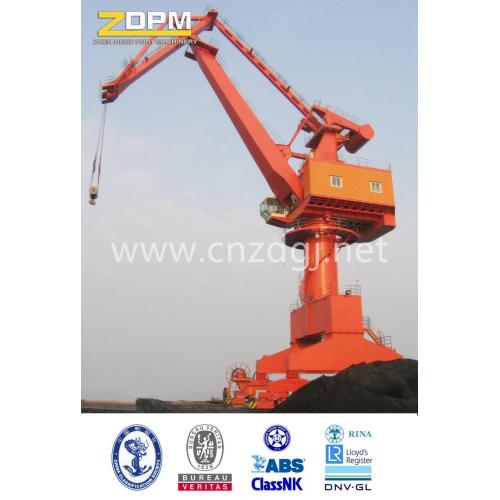

Rail Mounted Floating Dock Sea Port Portal Crane
Technical Features
Rail Mounted Flaoting Dock sea port portal crane has the characteristics of high working range, high lift, high speed, stable and reliable operation, high efficiency and high efficiency.
Portal crane for long coastline terminals, such as shipyard slipway, outfitting and 10000 ton berths bulk cargo wharf and other. Generally use the single arm rack of wire rope luffing, single boom luffing rack or quadruple arm toothed rack luffing structure, equipped with a hook or grab loading and unloading of goods.
Specification
|
parame |
unit |
MQ1025 |
MQ1030 |
MQ1625 |
MQ1630 |
MQ4033 |
MQ4540D |
|
|
Ratde capacity |
t |
10/10 |
10/10 |
16/16 |
16/10 |
40/25 |
45/15 |
|
|

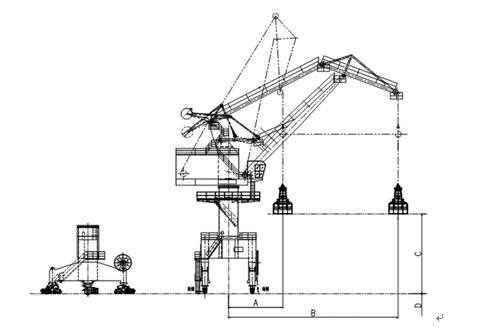

Working radius(A-B) |
m |
9~25 |
8.5~30 |
9~25 |
10~25/10~30 |
10~22/10~33 |
14~16/14~40 |
|
|
Hoisting height |
Above rail C |
m |
18/14 |
25/16 |
15/10 |
28/18 |
22 |
36 |
|
Below rail D |
m |
16 |
15 |
10/20 |
10 |
13 |
8 |
|
|
Hoisting speed |
m/min |
22/45 |
-/60 |
25/50 |
40/60 |
25/50 |
8~15.5 |
|
|
Luffing speed |
m/min |
40 |
52 |
40 |
50 |
45 |
16.5 |
|
|
Swing speed |
r/min |
1.5 |
1.6 |
1.4 |
1.5 |
1.2 |
0.4 |
|
|
Walking speed |
m/min |
20 |
27 |
26 |
27 |
25 |
26 |
|
|
Gauge /cardinal distance |
m |
10.5/10.5 |
10.5/10.5 |
10.5/10.5 |
10.5/10.5 |
10.5/10.5 |
10.5/10.5 |
|
|
Maximum wheel pressure |
KN |
25 |
25 |
25 |
25 |
25 |
24 |
|
|
Installed capacity |
kw |
276 |
290 |
389 |
298 |
477 |
204 |
|
| Packaging Details: | Mechanical part packing by plastic bag, electric parts by wooden box or standard exporting packing/Electrical and other parts are packaged by high quality plywood crates, main beams are packaged by Plastic Film |
| Delivery Detail: | Within 30 days after received your advance payment |
About us
ZDPM is one of the leading manufacturers of 60,000 square feet with dedicated, licensed and certificated staff, product range such as marine cranes, grabs, container spreaders, port cranes, crane clamps, hoppers and other spare parts.
ZDPM have got the SGS, CCS, BV, CE, ABS, ISO9000: 2008, ISO14001: 2004, OHSAS and other certifications, also accept third party inspection, such as SGS Factory test etc.
Auto CAD, 3DMax, Math CAD, Solid Works, ANSYS and SAP2000 Advanced.
16 months warranty after installation and commissioning unless the human damage factors.
24/7/365 day service, 2 years spare parts provided for better maintenance.
ZDPM committed not only supply high quality, on time delivery, reliable after sales service, but also offer the most competitive prices. Welcome to visit our factory!
Packaging & Delivery
FAQ
Pls kindly send us your detailed specifications as follow if you are interested in our cranes.
1. Load Capacity, ton: (_______) Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton
2. Jib length:(_______) m
3. Lift Height, H, m: (_______)
4. Voltage: (_______) Tips: 380V, 50Hz, AC, 3-phase or please note
5. Duty Class: (_______) Tips: A5, A3, If you don't know, please fill the follow
6. Hours per day: (_______)
7. Control way: (_______) Tips: Remote control, cabin control or pendent control
8. Lift Speed: (_______) Tips: Single speed, double speed, or stepless speed
9. Power supply system needed (_______)
10. What`s the application? Application: The crane will be used for lifting _____, and work____hours per day.
11. Your nearest port: (_______) We quote C&F price need the port. FOB price please note FOB
