Hydraulic Portal Crane Port Crane
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu,China |
|---|---|
| Productivity: | 200 |
| Supply Ability: | 60piece/Year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | CE,3C,ISO9001,SGS |
| Transportation: | Ocean,Land,Air |
Technical Features

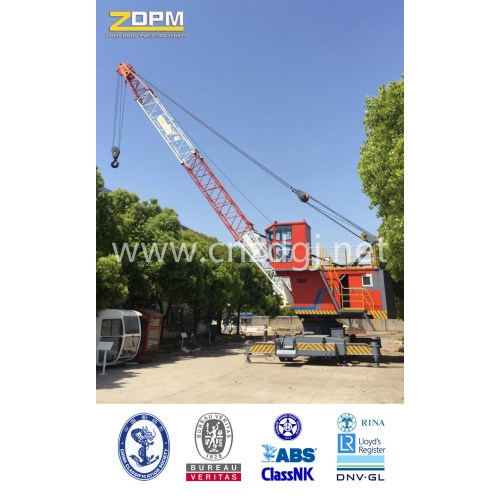

Hydraulic Portal Crane Port Crane is a multi-purpose crane machine which is extensively applied to loading and unloading all kinds of cargos at various working site. The main structure is steel frame. The lifting tools can be grab, container spreader, hook and electromagnet, etc. This crane has two different type according to the working demand: stationary type and travelling type.
Offshore crane can meet high efficiency work requirements, with the advantage of heavy lifting capacity, calm movement, high working efficiency, safety and reliability, compact frame, comfortable operation, nice appearance, convenience maintenance
Applications
Tire crane using electricity or oil is mainly used for port, railway station, railway station, industrial and mining enterprises, construction sites and other places of major parts and general cargo loading and unloading and lifting operation.
Design specifications
The deck crane according to "GB3811-2008 crane design specification" and "GB6067-85 safety regulation of hoisting machinery design and manufacture.
Specification
|
Hoisting capacity |
50t |
|
Toisting speed |
50m/min |
|
Rotary speed |
2.5r/min(maximum) 1r/min(Leg,rated) |
|
Maximum driving speed |
10km/h |
|
The amplitude of time (30°to 75°basic arm) |
55s |
|
Arm frame combination |
12.15.18.21.24.27.30m |
|
Tread |
2.4m |
|
Wheelbase |
3.175m(Before the bridge,) 1.45(Middle and rear) |
|
Extended leg lateral spacing |
6.4m |
|
The extended leg longitudinal spacing |
7m |
|
Extreme reaction force of a leg |
550KN |
|
Extreme reaction force of a pair of tires |
230KN |
|
Radius of tail turning |
4.2m |
|
Minimum turning radius |
9.6m |
|
Maximum climb gardient |
12.20% |
|
Whole machine quality |
~54000Kg (12m arm length) |
|
The shape size(length×width×height)of the crane arm |
8.064m×3.535m×4.544m |
|
Engine |
WD615-68 175Kw/1500rpm |
|
Generator |
TZH-150 150Kw/1500rpm |
|
Lift motor |
ZZGJZF280-53 55Kw 750rpm |
|
Variable amplitude motor |
ZZGJZF280-43 37Kw 750rpm |
|
Driving motor |
ZZGJ225-43 30Kw 1000rpm |
|
Rotary motor |
ZZGJ225-42 22Kw 1000rpm |
Packaging & Delivery
Packaging Details: Mechanical part packing by plastic bag, electric parts by wooden box or standard exporting packing/Electrical and other parts are packaged by high quality plywood crates, main beams are packaged by Plastic Film
Delivery Detail: Within 30 days after received your advance payment
About us
ZDPM is one of the leading manufacturers of 60,000 square feet with dedicated, licensed and certificated staff, product range such as marine cranes, grabs, container spreaders, port cranes, crane clamps, hoppers and other spare parts.
ZDPM have got the SGS, CCS, BV, CE, ABS, ISO9000: 2008, ISO14001: 2004, OHSAS and other certifications, also accept third party inspection, such as SGS Factory test etc.
Auto CAD, 3DMax, Math CAD, Solid Works, ANSYS and SAP2000 Advanced.
16 months warranty after installation and commissioning unless the human damage factors.
24/7/365 day service, 2 years spare parts provided for better maintenance.
ZDPM committed not only supply high quality, on time delivery, reliable after sales service, but also offer the most competitive prices. Welcome to visit our factory!
