Hydraulic Fixed Ship Deck Crane
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu,China |
|---|---|
| Productivity: | 200 SETS |
| Supply Ability: | 60 sets/Year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | CE,3C,ISO9001,SGS |
| Transportation: | Ocean,Land,Air |

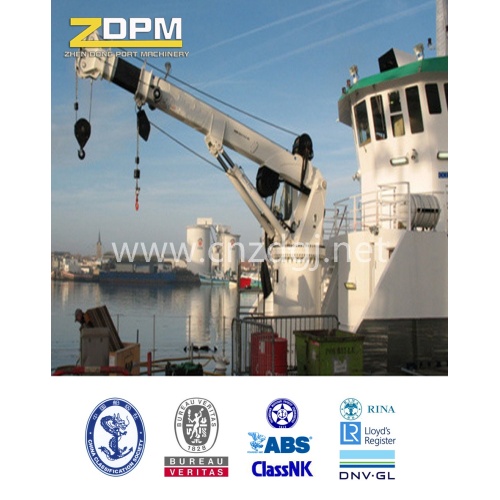

Hydraulic Fixed Ship Deck Crane
Design specifications
The deck crane according to "GB3811-2008 crane design specification" and "GB6067-85 safety regulation of hoisting machinery design and manufacture.
Technical Features
For general cargo ships and other carrier for effective and safe loading and unloading of goods and the design and manufacture. Such as hoisting large pieces of cargo. The cabin cover, etc. Crane through its pillar is installed on the upper deck of the ship. To wind, rain and storm. When the ship roll 5 degrees or trim 2 degrees. Crane can work normally.
Applications
The deck crane can detect between bank and ship, the ship to ship loading and unloading operation, the operation stability is good, flexible operation, is the ideal of inland lakes handling equipment.
Specification
|
Safety Load |
Max Outreach |
Lifting Speed |
Slewing Speed |
Luffing Time |
Hoisting Height |
Slewing Angle(°) |
Permissible Heeling (transverse/ |
Power(kW) |
|
10 |
6~20 |
15 |
1 |
60 |
30 |
360° |
2° /5° |
7.5 |
|
15 |
8~22 |
15 |
1 |
60 |
30 |
360° |
2° /5° |
11 |
|
20 |
5~24 |
15 |
1 |
60 |
30 |
360° |
2° /5° |
15 |
|
30 |
8~25 |
15 |
0.9 |
70 |
30 |
360° |
2° /5° |
22 |
|
50 |
12~25 |
15 |
0.75 |
80 |
30 |
360° |
2° /5° |
37 |
|
80 |
12~25 |
15 |
0.75 |
100 |
40 |
360° |
2° /5° |
55 |
|
100 |
12~25 |
15 |
0.75 |
110 |
40 |
360° |
2° /5° |
75 |
|
150 |
12~28 |
15 |
0.6 |
110 |
30 |
360° |
2° /5° |
90 |
|
200 |
16~30 |
15 |
0.6 |
120 |
35 |
270° |
2° /5° |
75*2 |
|
250 |
20~35 |
15 |
0.5 |
130 |
40 |
270° |
2° /5° |
90*2 |
|
300 |
35 |
15 |
0.4 |
140 |
40 |
270° |
2° /5° |
90*2 |
|
350 |
20~40 |
15 |
0.5 |
150 |
45 |
360° |
2° /5° |
110*2 |
|
400 |
20~40 |
15 |
0.5 |
150 |
45 |
360° |
2° /5° |
140*2 |
|
450 |
25~40 |
15 |
0.45 |
160 |
50 |
360° |
2° /5° |
140*2 |
|
500 |
20~40 |
15 |
0.45 |
170 |
50 |
360° |
2° /5° |
165*2 |
Packaging & Delivery
| Packaging Details: | Mechanical part packing by plastic bag, electric parts by wooden box or standard exporting packing/Electrical and other parts are packaged by high quality plywood crates, main beams are packaged by Plastic Film |
| Delivery Detail: | Within 30 days after received your advance payment |
About us
ZDPM is one of the leading manufacturers of 60,000 square feet with dedicated, licensed and certificated staff, product range such as marine cranes, grabs, container spreaders, port cranes, crane clamps, hoppers and other spare parts.
ZDPM have got the SGS, CCS, BV, CE, ABS, ISO9000: 2008, ISO14001: 2004, OHSAS and other certifications, also accept third party inspection, such as SGS Factory test etc.
Auto CAD, 3DMax, Math CAD, Solid Works, ANSYS and SAP2000 Advanced.
16 months warranty after installation and commissioning unless the human damage factors.
24/7/365 day service, 2 years spare parts provided for better maintenance.
ZDPM committed not only supply high quality, on time delivery, reliable after sales service, but also offer the most competitive prices. Welcome to visit our factory!
Packaging & Delivery
Recent Product Case show in Bangladesh
FAQ
Pls send us your detailed specifications as follow if you are interested in our cranes.
1. Load Capacity, ton: (_______) Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton
2. Jib length:(_______) m
3. Lift Height, H, m: (_______)
4. Voltage: (_______) Tips: 380V, 50Hz, AC, 3-phase or please note
5. Duty Class: (_______) Tips: A5, A3, If you don't know, please fill the follow
6. Hours per day: (_______)
7. Control way: (_______) Tips: Remote control, cabin control or pendent control
8. Lift Speed: (_______) Tips: Single speed, double speed, or stepless speed
9. Power supply system needed (_______)
10. What`s the application? Application: The crane will be used for lifting _____, and work____hours per day.
11. Your nearest port: (_______) We quote C&F price need the port. FOB price please note FOB.
