Offshore fixed pedestal 360degree slewing marine crane loading and unloading
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu,China |
|---|---|
| Productivity: | 200 |
| Supply Ability: | 60piece/Year |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,FCA |
| Certificate: | CE,3C,ISO9001,SGS |
| Transportation: | Ocean,Land,Air |

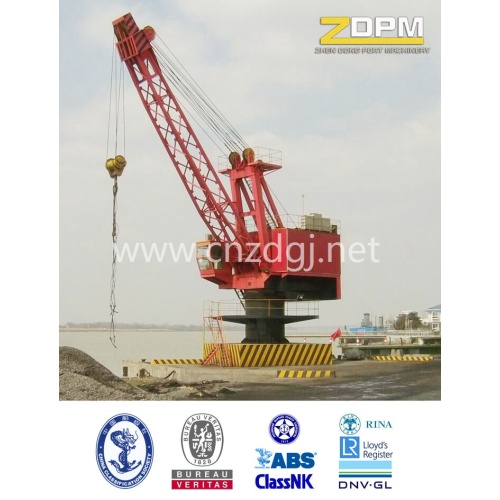

Offshore fixed pedestal 360degree slewing marine crane loading and unloading
Product Features
Offshore fixed pedestal crane is suitable for medium or small sized harbor,storage yard or factory district,for handling operation of container,grocery or the bulk cargo.
offshore fixed pedestal crane is the single jib with the rack luffing,using complex pulley compensation,the cargo can do horizontal displacement,therefore it can do completely luffing with loading, and the working efficiency is high.This type of
machine can work with hook and grab.
With the advantage of advanced capability, high working efficiency, compact frame, calm movement, comfortable operation, safety and reliability, convenience maintenance, nice appearance and so on, it can make good use of the limited space of the port, yard and other place
Specification
|
parame |
unit |
GQ2-514 |
GQ2-814 |
GQ2-1014 |
GQ2-1612 |
GQ2-2012 |
GQ2-2512 |
GQ2-3014 |
|
|
Ratde capacity |
t |
5 |
8 |
10 |
16 |
20 |
25 |
30 |
|
|
Working radius (A-B) |
m |
5.5-12.5 |
5.5-12.5 |
5.5-12.5 |
4.5-10.5 |
4.5-10.5 |
4.5-10.5 |
5.5-12 |
|
|
Hoisting height |
(Up the base)C |
m |
7 |
7 |
7 |
7 |
7 |
7 |
7 |
|
(Down the base)D |
m |
6 |
6 |
6 |
6 |
6 |
6 |
6 |
|
|
Hoisting speed(Grab) |
Hook |
m/min |
15 |
15 |
12 |
12 |
12 |
12 |
8 |
|
Grab |
m/min |
36 |
36 |
36 |
36 |
30 |
25 |
25 |
|
|
Luffing speed |
m/min |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
|
Swing speed |
r/min |
1.4 |
1.4 |
1.4 |
1.3 |
1.2 |
1.1 |
1 |
|
|
Installed power |
Hook power |
kw |
28 |
38.5 |
40.5 |
63 |
67 |
74 |
104 |
|
Grabbing crane |
kw |
39 |
49.5 |
63.5 |
85 |
104 |
112 |
179 |
|
Packaging & Delivery
Packaging Details: Mechanical part packing by plastic bag, electric parts by wooden box or standard exporting packing/Electrical and other parts are packaged by high quality plywood crates, main beams are packaged by Plastic Film
Delivery Detail: Within 30 days after received your advance payment
About us
ZDPM is one of the leading manufacturers of 60,000 square feet with dedicated, licensed and certificated staff, product range such as marine cranes, grabs, container spreaders, port cranes, crane clamps, hoppers and other spare parts.
ZDPM have got the SGS, CCS, BV, CE, ABS, ISO9000: 2008, ISO14001: 2004, OHSAS and other certifications, also accept third party inspection, such as SGS Factory test etc.
Auto CAD, 3DMax, Math CAD, Solid Works, ANSYS and SAP2000 Advanced.
16 months warranty after installation and commissioning unless the human damage factors.
24/7/365 day service, 2 years spare parts provided for better maintenance.
ZDPM committed not only supply high quality, on time delivery, reliable after sales service, but also offer the most competitive prices. Welcome to visit our factory!
Packaging & Delivery
Case show
FAQ
Pls kindly send us your detailed specifications as follow if you are interested in our cranes.
1. Load Capacity, ton: (_______) Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton
2. Jib length:(_______) m
3. Lift Height, H, m: (_______)
4. Voltage: (_______) Tips: 380V, 50Hz, AC, 3-phase or please note
5. Duty Class: (_______) Tips: A5, A3, If you don't know, please fill the follow
6. Hours per day: (_______)
7. Control way: (_______) Tips: Remote control, cabin control or pendent control
8. Lift Speed: (_______) Tips: Single speed, double speed, or stepless speed
9. Power supply system needed (_______)
10. What`s the application? Application: The crane will be used for lifting _____, and work____hours per day.
11. Your nearest port: (_______) We quote C&F price need the port. FOB price please note FOB.
