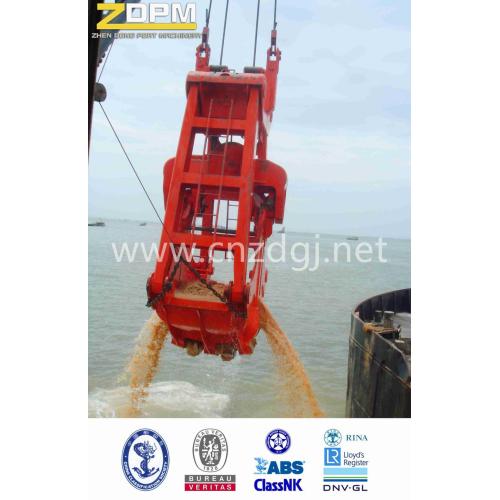

Mechanical Two Wire Rope Grab for Dredging
Technical Features
This product is mainly used for digging sludge and dinas underwater in order to dredge fairways. The opening and closing process is realized by the steel wire ropes in the hoisting mechanism and its closing force roots in its pulley block. Its structure is optimized to reduce the water surface tension when it leave the water surface.
Features
Simple structure, convenient operation, high efficiency, low malfunction rate.
Specification
|
Type&Size |
Grab volume (Dome)(m3) |
Main grab material |
Dead weight (t) |

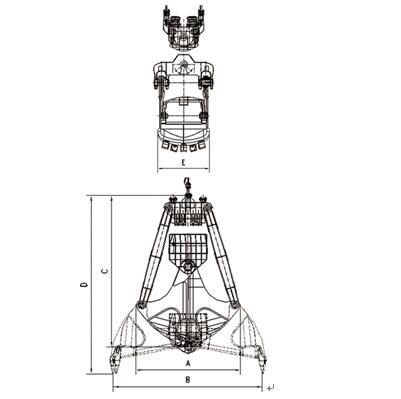

Dimensions (mm) |
Diameter of Sheave (mm) |
Pulley block |
Crane lifting weight (t) |
||||
|
A |
B |
C |
D |
E |
|||||||
|
BS6SJ[1]4A |
1 (00) |
Mud |
4 |
2380 |
3458 |
3533 |
4083 |
1320 |
Ø560 |
5 |
6 |
|
BS12SJ[1.5]6.5A |
1.5(00) |
Hard Mud |
6.5 |
3020 |
4039 |
3772 |
4532 |
1500 |
Ø560 |
5 |
12 |
|
BS20SJ[5]8A |
5(300) |
Mud |
8 |
3260 |
5042 |
4502 |
5280 |
1820 |
Ø650 |
4 |
20 |
|
BS30SJ[5]13B |
5(150) |
Hard Mud |
13 |
3740 |
5450 |
4942 |
5916 |
2012 |
Ø800 |
5 |
30 |
|
BS55[5.5]35BSJ |
5.5(00) |
Reef |
35 |
3960 |
5812 |
5614 |
6565 |
2150 |
Ø880 |
6 |
55 |
|
CS45SJ[4]25AV |
4(250) |
Reef |
25 |
3840 |
5657 |
5748 |
6715 |
1950 |
Ø880 |
6 |
45 |
|
CS46SJ[5]36BV |
5(250) |
Reef |
36 |
3600 |
5947 |
6164 |
7125 |
1940 |
Ø880 |
6 |
45 |
|
CS45SJ[8]28AV |
8(250) |
Hard Mud |
28 |
4040 |
6632 |
6494 |
7364 |
2102 |
Ø880 |
6 |
45 |
|
CS55SJ[5]32B |
5(250) |
Reef |
32 |
3960 |
5734 |
7194 |
8167 |
1940 |
Ø880 |
5 |
55 |
|
CS70SJ[16]48AV |
16(250) |
Mud |
48 |
5130 |
7712 |
7415 |
8724 |
2954 |
Ø1045 |
6 |
70 |
|
CS80[8]60AV |
8(250) |
Reef |
60 |
4130 |
6695 |
7189 |
7753 |
2530 |
Ø1045 |
7 |
80 |
|
CS80SJ[11]55BV |
11(250) |
Hard Mud |
55 |
5120 |
7780 |
7553 |
8924 |
2420 |
Ø1045 |
7 |
55 |
|
CS200SJ[9]110BV |
9(250) |
Wreck |
110 |
5465 |
7202 |
8666 |
10264 |
3000 |
Ø1500 |
7 |
110 |
Packaging & Delivery
Delivery Detail: Within 30 days after received your advance payment.
About us
ZDPM is one of the leading manufacturers of 60,000 square feet with dedicated, licensed and certificated staff, product range such as marine cranes, grabs, container spreaders, port cranes, crane clamps, hoppers and other spare parts.
ZDPM have got the SGS, CCS, BV, CE, ABS, ISO9000: 2008, ISO14001: 2004, OHSAS and other certifications, also accept third party inspection, such as SGS Factory test etc.
Auto CAD, 3DMax, Math CAD, Solid Works, ANSYS and SAP2000 Advanced.
16 months warranty after installation and commissioning unless the human damage factors.
24/7/365 day service, 2 years spare parts provided for better maintenance.
ZDPM committed not only supply high quality, on time delivery, reliable after sales service, but also offer the most competitive prices. Welcome to visit our factory!
Product Show
FAQ
Pls kindly send us your detailed specifications as follow if you are interested in our grabs.
1. What's the lifting material?
Tips: Grain, Sulfur, Chemical fertilizer, steel scrap, timber, coal mine, iron mine or garbage?
2. What's the cubage of the grab?
3. Crane Tone (The tonne of the crane ) or what kind of the crane that the grab working with?
4. What's the maximum lifting weight of the crane?
5. what is the grab grasp material density? (t/m3 )
6. If possible could you show us a pic or send us your tech drawing for our info?
7. What's the working environment?
8. Your nearest port: Tips: We quote CIF price need the port. FOB price please note FOB
