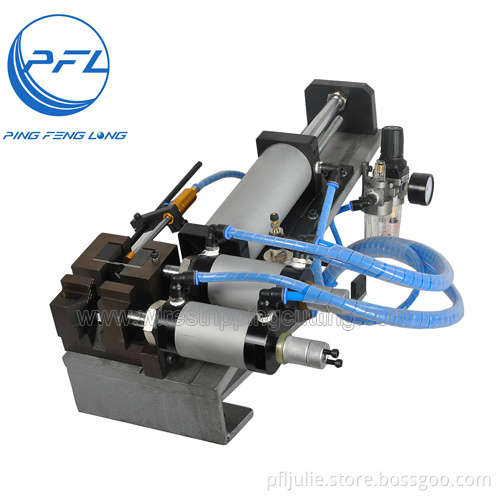

PFL-315 Cable stripping machine
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF, CIP
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 2 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500 Piece/Pieces per Month |
| Supply Ability: | 500 Piece/Pieces per Month |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,CIP |
| Transportation: | Ocean,Land,Air |
Features:
1.Adopt bevel design, according to somatology.
2.Dual-driving cylinder,there will no spring breakage.
3.Two conjoined of oil self-feeding and gas self-supporting.Timely oil supply to cylinder can decrease abrasion of interior cylinder and lengthen life.
4.Special sliding hold setting, stable running stroke, accurate stripping & cutting.
5.Air and Electric control, easy operation.
6.Adjustable structure, and wire thickness.
Apply for:
Widely for different kinds of short cables with small diameter, such as AC/DC power wire, computer cable,
electronic cable and multi-core cable.
Specification:
| Model | PFL-305 | PFL-310 | PFL-315 | PFL-330 | PFL-416 |
| Power | AC220V/110V 50/60HZ | ||||
| Wire diameter | Max 8mm | Max 15mm | Max 20mm | Max 20mm | Max 30mm |
| Stripping length | Max 50mm | Max 100mm | Max 150mm | Max 300mm | Max150mm |
| Air preasure | 5 ~ 8kg/cm2 | ||||
| Force | 31 ~ 73kg | 49 ~ 115kg | 49 ~ 115kg |
|
|
| Cylinder diameter | Ø40mm | Ø50mm | Ø60mm | Ø60mm | Ø80mm |
| Measurement | 40*30*27cm | 48*33*28cm | 60*42*36cm | 110*55*45cm | 62*43*40cm |
| Gross Weight | 20kg | 25kg | 45kg | 65kg | 50kg |
| Gross Weight | Wooden case | ||||
If there is anything we can do for you,please contact us any time!
