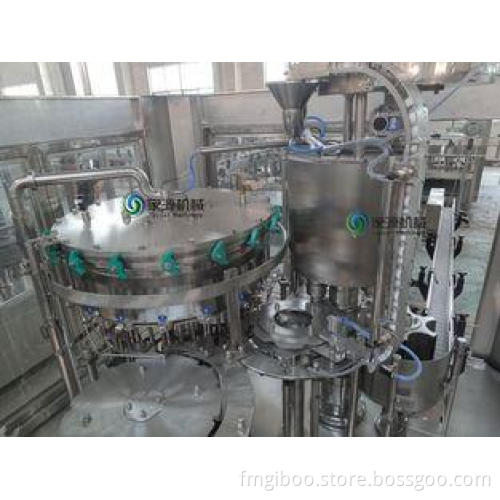

Auto Carbonated Drinks Filling Line PLC Control For Plastic Bottle
1. Products: Carbonated drinks production line
2. Model:DGCF18-18-6
3. Production capacity: 5000-6000bph
4. Main material: SS304
5. Mitsubishi PLC control
6. Origin: Jiayuan
7. Certificate: CE&SGS
Description:
1. This machine is used to fill cola, sprite and other carbonated beverage.
2. All the machine part which contact with liquid is high quality stainless steel 304.
3. The relative fittings are from international famous brand.
4.The carbonated beverage filling machine was equipped with suspension type air conveyor and frequency control of motor speed.
5. This machine is comprised of rinsing, filling and capping system.
Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.
Filling: counter pressure filling with holding bottle neck.
Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
6. This machine owns the reasonable, stable and safe design.
7.Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
Applications:
Soft drink filling line: DGCF Washing, normal pressure Filling, Capping 3-in-1 unit is a new type self-developed equipment, which bases on years’ usual practice and adopt the advanced technology, and absorb many clients’ views. It meets the client’s requirement about filling different bottle size through one set. The suspension card bottleneck is adopted to make changing the bottle size more convenient. It can deliver the bottles automatically by blind and then washing, drying, filling, covering, capping by order automatically. This equipment employs frequent and speed adjustment system so that it can adjust the speed freely and enable the operation user-friendly. This machine is mainly used in washing, filling and sealing for gas beverage (soda water, cola).
Specifications:
Carbonated drinks production line
|
Model |
DCGF18-18-6 |
|
Production Capacity(BPH) |
5000-6000 |
|
Filling precision |
≤+5mm Liquid Level |
|
Fills installs the pressure (MPa) |
≤0.4 |
|
Bottle specification(mm) |
Bottle Diameter:φ50-φ100; Height:150-310 |
|
Suitable cap Shape |
Plastic Screw Cap |
|
Total output (kw) |
5.03 |
|
Weight (kg) |
3000 |
|
Overall dimensions(mm) |
2450*1800*2200 |
Component
PLC: MITSUBI
Frequency converter: MITSUBI
Contactor: DELIXI
Circuit breaker: DELIXI
Touch screen: WEINVIEW
Pneumatic system: Airtac
Proximity switch: Omron
Optoelectronic switch: Omron
