2500 BPH CSD Liquid Filling Equipment 12 Heads Beer Rotary
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|

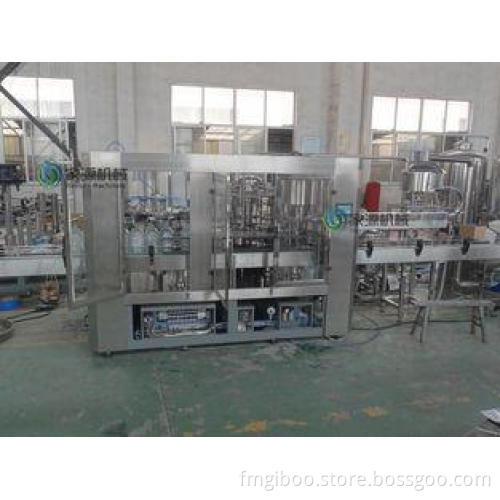

2500 BPH CSD Liquid Filling Equipment 12 Heads Beer Rotary Filling Machine
Quick Detail:
- Capacity: 2500BPH
- Model: 3-in-1 type, BXGF12-12-4
- Applicable bottle type: 5-10L bottle
- Designed power supply: 380V/50HZ/3Phase/AC
- Customizable
- CE,ISO,SGS,3-A certificate
- 5L Water filling machine
Automatic 1000BPH SUS304/316 BXGF9-9-4 3-in-1 5L water bottling plant
Description:
5L water filling machine
BXGF series filling machine is special designed for 3L.5L, 7L and 10L water bottles. It is combined rinsing, filling and capping function in one unit. This machine is suitable for filling mineral water, pure water, drinking water and other non-carbonated beverage. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Machine features
- We adopt gripe bottle neck technology simplify process of bottle-size-change, just need to change arc board, starboard or other nylon pieces.
- Specially-designed rinser grippers are made of stainless steel which are firm and endurable, with no contact to screw part of the bottle to keep away of second pollution.
- High speed and high flux gravity filing machine valve, insure high speed filing and accurate liquid level with no liquid waste.
- Sport board of starwheel using twist descending way to simplify the process of bottle-size-changing. Only need to change height of conveyer, ten minutes is ok.
Application
This 5Lwater filling machine is used for making the following 5L bottles packed beverage:
- 5L bottled pure water
- 5L bottle oil
- 5L bottled mineral water
- 5L bottled juice, etc non-carbonated liquid beverage.
Specifications:
|
Number of heads |
12 Rinsing heads,12 Filling heads,4 Capping heads |
|
Applicable bottle size |
PET bottle |
|
Diameter |
150-195 mm |
|
Bottle height |
230~360mm |
|
Rated Capacity |
2500BPH(5.0L) |
|
Cap Type |
Plastic Screw Cap 46mm Neck for PET Bottles |
|
Volume |
6.0/8.0/10.0Liters |
|
Timing Type |
Transducer |
|
Washing Drop dryer time |
3.4sec |
|
Filling temperature |
<40°C |
|
Compress air wastage |
0.8~ |
Competitive Advantage:
- The whole process is automatic, no bottle no filling, no cap, machine will stop.
- This machine has three steps, first is washing, second is filling, third is sealing the bottle.
- Low power consumption, better material SUS 304, SUS 316.
- Auto complete line, need less worker.
- Simple structure, low investment
The three functions of bottle washing, filing and capping are composed in one body of the machine
