High Tensile Bright High Carbon Steel Spring Wire for Tyre Bead Wire Dia. 0.89mm
Wire Diameter: 0.89mm
Tensile Strength: Normal Tensile T/S 2250 -2570MPa
Surface: Bright ( without coating)
General
1.Steel rod carbon content: 0.70 – 0.82%
2. Physical properties Unit TARGET Min. Max. METHOD
|
Diameter mm |
0.890 0.870 0.910 |
|
|
Tensile strength MPa |
2410 2250 2570 |
ISO 6892-1 |
|
Breaking Force N |
1500 1400 1600 |
ISO 6892-1 |
|
Number of bends r=2.5 - |
- - - |
- |
|
Torsions @ break (100*d) - |
- 32 - |
ISO 7800 |
3.Straight Unit TARGET Min. Max. METHOD
|
Cast of wire mm |
- 360 - |
|
|
Helix mm |
0 - 100 |
|
4. Other Parameters Unit TARGET Min. Max. METHOD
|
Number of welds on reel |
- - 1 |
|
|
Weld strength N |
- 600 - |
ISO 6892-1 |
|
Diameter at weld mm |
- - 0.930 |
|
|

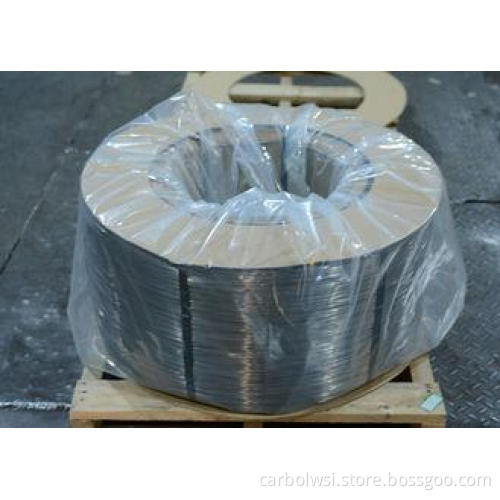

Weight of coil kg |
450 400 460 |
|
|
Width of coil mm |
280 - 295 |
|
5. Advantage
Consistent tensile strength
Wire free of defects
Clear surface
Free of dust
Trouble- free pay off
