0.78mm - 1.50mm Bright Tyre Bead Wire , Copper coated Ste
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong,China |
|---|
Product Description
Product Description

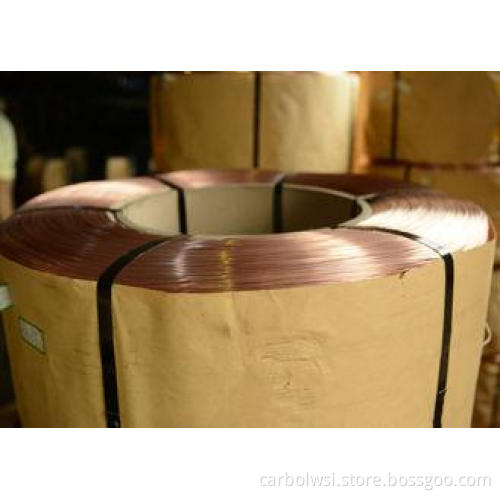

Tyre Bead Wire Diameter 0.78mm to 1.50mm Tensile Strength 1750 – 2300 Mpa Z2 pack Air duct
Specifications:
1.Diameter: 0.78 0.90mm 1.00mm 1.10mm 1.20mm 1.26mm 1.50mm
Diameter Tolerance: +/- 0.02mm
2. Finishes: Bronze coating / Copper coating
3. Weight of bronze coating: 0.30 -1.35 g/kg
4. Tensile Strength: 1750 – 2300 Mpa
5. Steel Grade: High Carbon Steel C1065 C1070
6. Package: 400kgs+/-20kgs with spooless cores Z-2 Packs, 2 or 3 coils in one pallet.
ID: 355mm Min.
OD: 720mm Max.
Wire reel Width: 280mm
7. Standard: GB14450-2004 or as per client’s specification
Description:
Bead Wires are manufactured from quality high carbon wire rods, with superior surface coating and are used for the reinforcement of all sorts of reliable hose & duct.
Applications:
Armoured hoses
Flexible ducting
Hose reinforcing
Competitive Advantage:
Excellent surface coating
High dimensional accuracy
Trouble-free forming
Trouble-free pay off
