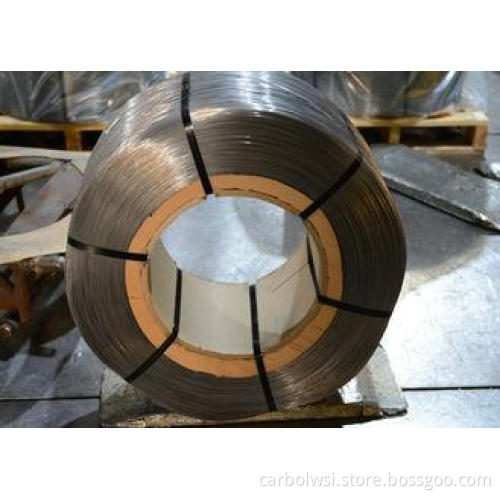

DIN 17223 Carbon Steel Wire for Helical Spring With Bright

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong,China

Product Description

Product: DIN 17223 Carbon Steel Wire for Spring With Bright surface Process Patented and Hard Drawn

Specification

Surface Finish: Bright dry drawn and phosphatize
Bright dry drawn and grey
Standard: DIN 17223
Diameter and Mechanical properties

1. Mechanical properties

Diameter mm	Tensile Strength N/mm2		Diameter mm	Tensile Strength N/mm2
Diameter mm	Class A	Class B	Diameter mm	Class A	Class B
0.6	-	2140 ~ 2400	1.7	1570 ~ 1800	1810 ~ 2030
0.63	-	2130 ~ 2380	1.8	1550 ~ 1780	1790 ~ 2010
0.65	-	2120 ~ 2370	1.9	1540 ~ 1760	1770 ~ 1990
0.7	-	2090 ~ 2350	2	1520 ~ 1750	1760 ~ 1970
0.75	-	2070 ~ 2320	2.1	1510 ~ 1730	1740 ~ 1960
0.8	-	2050 ~ 2300	2.25	1490 ~ 1710	1720 ~ 1930
0.85	-	2030 ~ 2280	2.4	1470 ~ 1690	1700 ~ 1910
0.9	-	2010 ~ 2260	2.5	1460 ~ 1680	1690 ~ 1890
0.95	-	2000 ~ 2240	2.6	1450 ~ 1660	1670 ~ 1880
1	1720 ~ 1970	1980 ~ 2220	2.8	1420 ~ 1640	1650 ~ 1850
1.05	1710 ~ 1950	1960 ~ 2200	3	1410 ~ 1620	1630 ~ 1830
1.1	1690 ~ 1940	1950 ~ 2190	3.2	1390 ~ 1600	1610 ~ 1810
1.2	1670 ~ 1910	1920 ~ 2160	3.4	1370 ~ 1580	1590 ~ 1780
1.25	1660 ~ 1900	1910 ~ 2140	3.6	1350 ~ 1560	1570 ~ 1760
1.3	1640 ~ 1890	1900 ~ 2130	3.8	1340 ~ 1540	1550 ~ 1740
1.4	1620 ~ 1860	1870 ~ 2100	4	1320 ~ 1520	1530 ~ 1730
1.5	1600 ~ 1840	1850 ~ 2080	4.25	1310 ~ 1500	1510 ~ 1700
2	1520 ~ 1750	1760 ~ 1970

2. Chemical Requirements

Chemical Requirements

Element	Composition, %
Carbon	0.45 – 0.85
Manganese	0.30 – 1.00
Phosphorus, max	0.040
Sulfur, max	0.050
Silicon	0.020

3. Cast

As per client’s request

Descripation

Every year, we aways supply our clients quality patented cold drawn steel wires according to DIN 17223, in 2015, up to now, we export this kind of spring wires over 10,000 tonnes.
