Clean Uniform Surface Finish Bright High Carbon Steel Wire
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong,China |
|---|
Product Description
Product Description
Clean Uniform Surface Finish Bright High Carbon Steel Spring Wire Flexiable Air Duct Dia. 0.90mm - 1.65mm
GHUANGHUA - Duct Wire Expert
Specifications:
Diameter: 0.90mm 0.95mm 1.00mm 1.05mm 1.10mm 1.15mm 1.20mm 1.25mm 1.30mm 1.45mm 1.57mm 1.60mm 1.65mm
Diameter Tolerance: +/- 0.02mm
Tensile Strength: 1750 Mpa – 2300 Mpa
Finish: Bright / uncoated
Steel Grade: rod grade C1070 HIGH CARBON steel

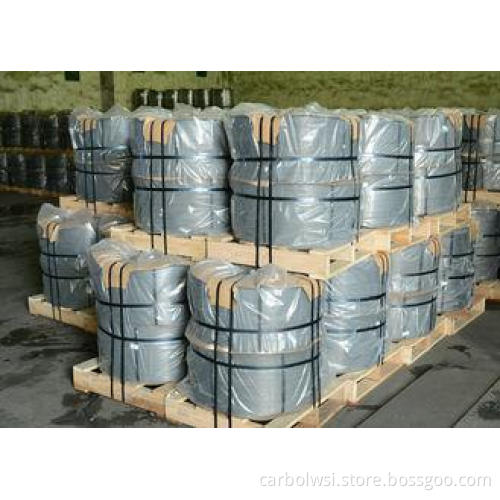

Package: 1) 400kgs +/-20kgs with spooless cores Z-2 Packs, 1 or 2 coils in one pallet.
ID: 355mm ( 14”) Min.
OD: 737mm (29”) Max.
Wire reel Width: 280 mm (11”)
2) 420kgs +/- 30 kgs per steel reel. 1 reel or 2 reels on one pallets
Flange diameter: 630mm
Traverse length: 400mm
Barrel diameter: 360 mm
Height of reel: 475mm
Standard: DIN 17223 ASTM A227 JISG 3521 etc.
Description:
GUANGHUA is the biggest of exporter of high tensile carbon spring wires.our duct wires have superior surface finish and free of residual contamination.they are produced from quality high carbon wire rods and dedicated production processes ensures that give high dimensional accuracy and minimal helix distortion, which results in trouble free payoff and forming.
Applications:
Armoured hoses
Flexible ducting
Competitive Advantage:
Consistent high quality steel wires for efficient manufacture of reliable hose and ducting products.
Excellent surface coating
High dimensional accuracy
Trouble-free pay off and forming
