6061/T6 Aluminium Frame PVC Cone roof tent
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 100 Square Meter
- Min. Order:
- 100 Square Meter
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou Jiangsu(China Mainland) |
|---|---|
| Productivity: | 100000 Square Meter/Month |
| Supply Ability: | 100000 Square Meter/Month |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | SGS, M2, TUV |
| Transportation: | Ocean,Air |

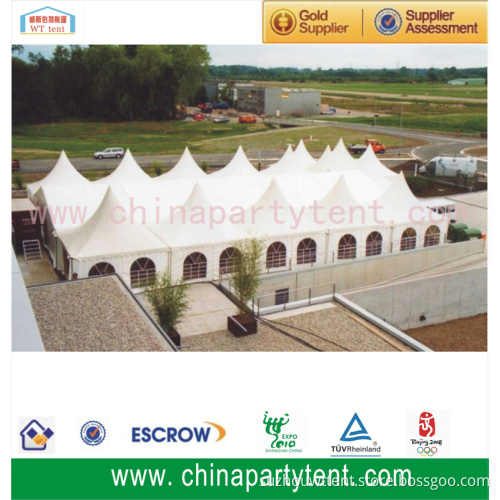

6061/T6 Aluminium Frame PVC Cone roof tent
High class hexagon tent for party (SS/HEX, Hexagon tent) can be widely used as the wedding tent, party
tent, exhibition tent,conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports
tent, & temporary, semi-permanent orpermanent building purpose etc.
Specification
Type
Span (m)
Side height (m)
Ridge height (m)
Peak Height (m)
Bay Distance (m)
Roof Pitch
Longest Component (m)
Wind Load (km/h)
SS6/2.6HEX/(HP)
6
2.6
3.7
5.2
3
20°
3.5
80
SS8/2.6HEX/(HP)
8
2.6
4.2
5.7
4
20°
4.3
80
SS9/2.6HEX/(HP)
9
2.6
4.4
5.9
4.5
20°
4.8
80
SS10/2.6HEX/(HP)
10
2.6
4.5
6.8
5
20°
5.4
80
MS10/2.6HEX/(HP)
10
3.3
5.2
7.5
5
20°
80
MS12/2.6HEX/(HP)
12
3.3
5.5
9.2
6
20°
80
Main frame Profile
SS Series:100x48x3mm(4-Channel)/MS Series:152x120x4mm(4-Channel)
Eave Connection
SS series: Hot-dip Galvanized Steel Insert / MS series:Hot-dip Galvanized Twin Steel Plate
Roof Fixing
Bar Tension
Frame Material
Hard Pressed Extruded Aluminum 6061/T6
Cover Material
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
