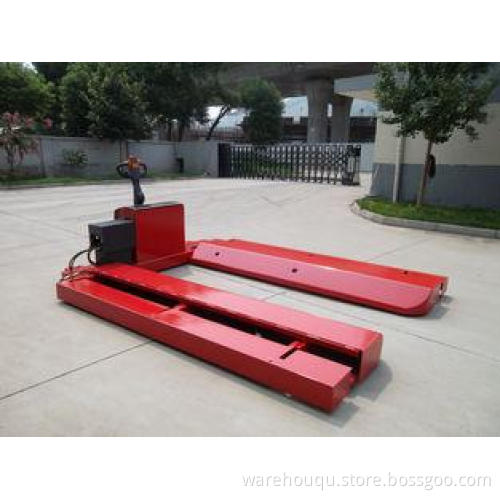

Customized Paper Roll Pallet Truck with Extreme Leg Width

Main Features:
1. Regenerative braking function
2. CURTIS electronic controller
3. Germany Frei handle
4. Emergency reversing device in the handle provides improved operating safety.
5. Emergency power disconnect switch.
6. Braking applied with handle upright and horizontal position, increasing the safety of the truck.

Specification:

Identification	Product model		XPK30-2
	Power supply		Electric
	Operating type		Standing or Pedestrian
	Load capacity	Q Kg	3000
	Load center distance	C mm	750
	Load distance	X mm	182
	Wheelbase	Y mm	1850
Wheel	Tyres		Polyurethane
	Tyre size drive end	mm	Φ230x75
	Type size load end	mm	Φ80x70
	Balancing wheel size	mm	Φ100x40
	Wheels number (x=drive wheel) drive end/load end		1x-2/4
Dimensions	Lowered mast height	h1 mm	1350
	Lift height	h3 mm	205
	Forks height,lowered	h5 mm	85
	Height of handle in drive position (Max/Min)	h6 mm	1200/985
	Overall length	L1 mm	2070
	Length to face of forks	L2 mm	620
	Overall width	b1 mm	1165
	Fork dimensions (Forging)	s/e/l mm	175/65/1450
	Forks width	b3 mm	1165
	Minimum ground clearance	m mm	30
	Turning radius	Wa mm	2100
Performance	Travel speed loaded/unloaded	km/h	5.4/6
	Lift speed loaded/unloaded	mm/s	40/50
	Lowering speed loaded/unloaded	mm/s	50/40
	Max gradeability loaded/unloaded	%	8/15
	Service brake		Electromagnetic
Electric Motor	Drive motor rating	kW	1.1
	Lift motor rating	kW	2.2
	Battery voltage / nominal capacity	V/Ah	24/240
Others	Type of drive control		MOSFET Control
	Noise level at operator’s ear	dB(A)	<70
