Basic Info

Place of Origin:	Guangdong,China

Product Description

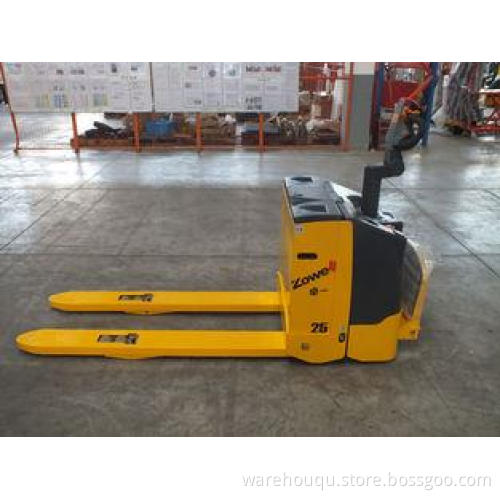

2 Ton Electric Double Pallet Truck with Handle Safety Guide and 1.5M Fork Length

Main Features:

1. SWISS BUCHER brand Hydraulic pump.
2. Regenerative braking function
3. CURTIS electronic controller
4. Germany Frei handle
5. Emergency reversing device in the handle provides improved operating safety.
6. Emergency power disconnect switch.
7. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
8. Five points structure brings the truck more stability
9. Vertical driving system
10. External encoder

Specification:

Identification	Product model designation		XP20
	Drive unit		Electric
	Operate type		Standing or Pedestrian
	Load capacity	Q kg	2000
	Load center	C mm	600
	Load distance, Center of drive axle to fork back	X mm	140
	Wheelbase	Y mm	1300

weight	Truck weight (without battery)	kg	475
	Axle loading , loaded(front/rear)	kg	1077/1696
	Axle loading , unloading(front/rear)	kg	441/128

Wheel	Tires		Polyurethane
	Drive wheels size	mm	Ф230×75
	Loaded wheels size	mm	Ф80×70
	Balance wheels size	mm	Ф100×40
	Wheels number, front/rear(x=driven wheels)		1x-2/4
	Tread ,front	mm	525
	Tread ,rear	mm	390

Dimensions	Height, mast lowered	h1 mm	1345
	Lift height	h3 mm	205
	Forks height, lowered	h5 mm	85
	Height of tiller in drive Position(max/min)	h6 mm	1345/985
	Overall length	L1 mm	1882
	Length to face of forks	L2 mm	732
	Overall width	b1 mm	784
	Fork dimensions	s/e/l mm	180/55/1150
	Maximum forks width	b3 mm	570/680
	Minimum ground clearance	M mm	30
	Aisle width for pallets 800x1200 lengthways	Ast mm	2132
	Turning radius	Wa mm	1716

Performance	Travel speed loaded/unload	Km/h	5.2/6
	Lift speed loaded/unload	mm/s	40/50
	Lowering speed loaded/unload	mm/s	50/40
	Max grade ability loaded/unload	%	8/15
	Service brake		Electromagnetic brake

Electric motor	Drive motor rating	kW	1.2 (DC),1.5 (AC)
	Lift motor rating	kW	2.2
	Battery voltage/capacity	V/Ah	24/180
	Battery weight	kg	180

others	Control unit type		Mosfet control
	Sound level	Db(A)	<70
