Multifunction 3 Ton Electric Platform Truck With Drive Moto

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong,China

Product Description

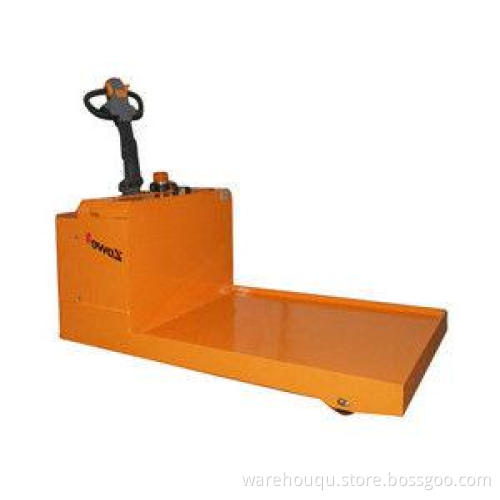

3 Ton Electric Platform Truck

Main Features:
1. Regenerative braking function
2. CURTIS electronic controller
3. Germany Frei handle
4. Emergency reversing device in the handle provides improved operating safety.
5. Emergency power disconnect switch.
6. Braking applied with handle upright and horizontal position, increasing the safety of the truck.

Specification:

Identification	Product model		XPA30
	Power supply		Electric
	Operating type		With or without platform
	Load capacity	Q Kg	3000
	Load center	C mm	600
	Weight (without battery)	Kg	500
Wheel	Tyres		Polyurethane
	Driving wheel size	mm	Φ230×75
	Loading wheel size	mm	Φ125×60
	Balancing wheel size	mm	Φ125×60
Dimensions	Overall height	mm	1410
	Platform height fromground	mm	140
	Overall length	mm	1765
	Overall width	mm	1000
	Platform length	mm	1200
	Platform width	mm	1000
	Minimum ground clearance	mm	55
	Aisle width	mm	2015
	Turning radius	mm	1600
Performance	Travel speed loaded/unloaded	km/h	5.2/6
	Max gradeability loaded/unloaded	%	5/10
	Service brake		Electromagnetic
Motor	Drive motor rating	kW	1.5
	Battery voltage	V/Ah	24/210
