5 Ton Battery Operated Electric Platform Truck Material Han

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong,China

Product Description

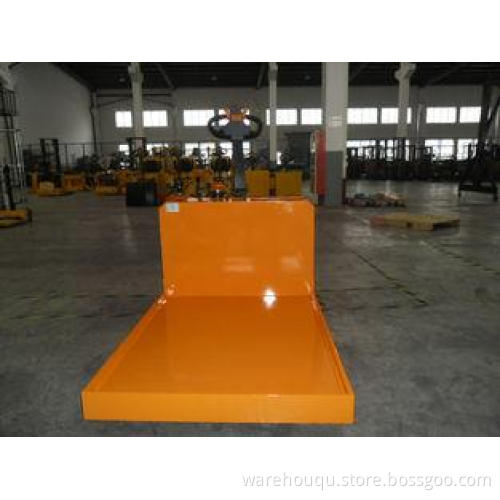

5 Ton Electric Platform Truck

Main Features:
1. Regenerative braking function
2. CURTIS electronic controller
3. Germany Frei handle
4. Emergency reversing device in the handle provides improved operating safety.
5. Emergency power disconnect switch.
6. Braking applied with handle upright and horizontal position, increasing the safety of the truck.

Specification:

Identification	Product model		XPA100
	Power supply		Electric
	Operating type		With or without platform
	Load capacity	Q Kg	10000
	Load center	C mm	750
	Weight (without battery)	Kg	1500
Wheel	Tyres		Polyurethane
	Driving wheel size	mm	Φ230×71
	Loading wheel size	mm	Φ125×60
	Balancing wheel size	mm	Φ125×60
Dimensions	Overall height	mm	1575
	Platform height from ground	mm	325
	Overall length	mm	2650
	Overall width	mm	1300
	Platform length	mm	1500
	Platform width	mm	1300
	Minimum ground clearance	mm	90
	Aisle width	mm	1500
	Turning radius	mm	2135
Performance	Travel speed loaded/unloaded	km/h	5/5.5
	Max gradeability loaded/unloaded	%	5/10
	Service brake		Electromagnetic
Motor	Drive motor rating	kW	7.5
	Battery voltage	V/Ah	48/400
