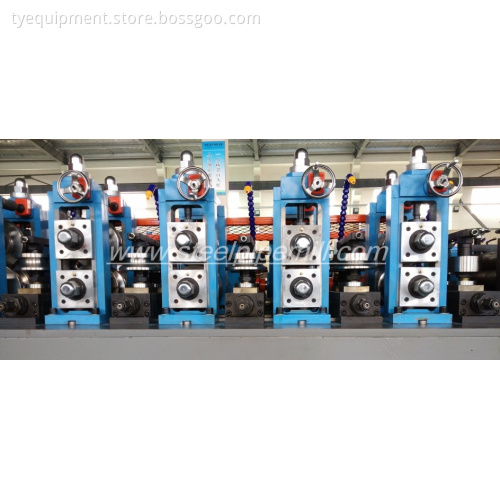

Retangulor steel pipe line

 General technical specification

1. Raw material requirements

²  Material: Hot rolling or cold rolling steel

²  Tensile strength: σb≤600Mpa

²  Yield point: σs≤315MPa

²  Coil width: 40~120mm

²  Coil outer diameter: Max. Φ1600mm

²  Coil inner diameter: Φ508mm

²  Coil weight: Max.1.5T

²  Material thickness: 0.6~1.8mm for Round pipes / ≤1.5mm for Square & rectangle pipes

2. Output product scope

²  Pipe type: Straight seam high frequency welded pipes

²  Pipe purpose: Electric heating tube, fridge pipe, Auto car pipe, sporting facility tube, furniture pipe, cooler pipe, pressure feeding pipe, construction pipe, configuration pipe.

²  Round pipe size: Φ13mm~Φ38mm * 0.6mm~1.8mm

²  Square pipe size: 10×10mm~30×30mm * 0.6mm~1.5mm

²  Rectangle pipe size: 7×14mm~20×40mm * 0.6mm~1.5mm (a:b≤2:1)

²  Producing length: 4~10m (can be designed by customer request)

²  Cutting length precision: ±3mm (by hot frication computer saw)

3. Line capability

²  Line direction: Pending and will be decided by Buyer

²  Producing speed: 30~100m/min
