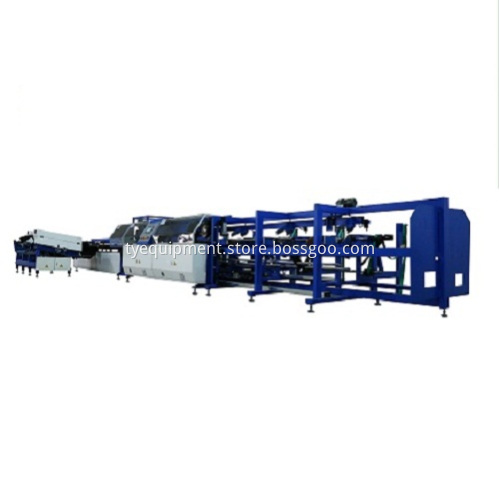

Automatic Steel Pipe Cutting Line

USD15000

≥1 Set/Sets

Payment Type:: L/C, T/T

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 40 Days

Transportation:: Ocean

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T
Incoterm:	FOB
Transportation:	Ocean
Port:	Shanghai

Product Description

Technical parameters:

• Cutting length: the shortest 15mm, the longest 2500mm.

• Length * width * height (mm): 14500 * 4500 * 170

• Pipe range: round pipe diameter 10mm-90mm, square pipe 70*95mm

• Wall thickness range: 0.5mm-6mm

• Without dragging function: material head size ≥15mm, tail residue ≥65mm

• With dragging function: material head size ≥15mm, tail residue: ≥20mm

Note: The dragging function is only applicable to products with a cutting length greater than 160 mm.

• Dimensional tolerance: +/- 0.3 mm

• Total power (including deburring machine): 20.54 kW

• Estimated power consumption (including deburring machine): 16.5 kW

• Air pressure requirement: 8 bars air pressure

• Hydraulic oil tank: 200L

• Hydraulic oil cooling method: air cooling

Cutting efficiency comparison table (The statistics in this table are the theoretical maximum cutting efficiency, and the actual cutting efficiency allows a 15% floating range.)

Speed Refernce													Material	Thick(mm)
Pcs/cut	15mm		500mm		1000mm		1500mm		2000mm		2500mm
Pcs/cut	cut	Pcs	cut	Pcs	cut	Pcs	cut	Pcs	cut	Pcs	cut	Pcs
1	733	733	630	630	535	535	442	442	380	380	361	361	ZSTE340	1.00
2	733	1465	630	1260	535	1069	442	884	380	760	361	722	ZSTE340	1.00
3	733	2198	630	1890	535	1604	442	1326	380	1139	361	1083	ZSTE340	1.00
4	733	2930	630	2520	535	2138	442	1768	380	1519	361	1444	ZSTE340	1.00
5	733	3663	630	3150	535	2673	442	2210	380	1899	361	1805	ZSTE340	1.00
6	733	4396	630	3780	535	3208	442	2651	380	2279	361	2165	ZSTE340	1.00
