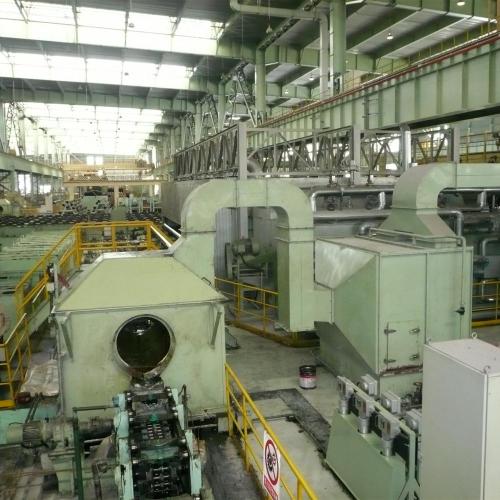

Steel Pipe Coating machine

Each set of the equipment is composed of 16 parts as follows:
1 set of tube surface pretreatment system,
1 set of mechanical frame,
1 set of sprayer unit,
1 set of waste paint gathering device,
1 set of first and back recycling drum,
1 set of first conveyer,
1 set of middle conveyer,
1set of end conveyer,
1 set of light barrier,
1 set of UV paint drying device,
1set of waste paint recycling system ,
1 set of paint supplying system  ,
1 set of cooling system,1 set of air inlet piping system,
1 set of air output piping system. Functions of each part will be described in details as follows,

Specification

Processing

Adjusting operation parameters (including the tube centerline height, roll speed, spraying flux .etc) ----the UV lamp starts to warm-up----cooling blower starts up----air exhaust blower start up----the first and the back recycle drums start up----feed the tube---- tube surface pretreatment ----the first press wheel descend----the spray guns start to spray paint ---- light barrier lifts----drying paint by UV lamp---- the rear press wheel descend----the light barrier close----discharge
